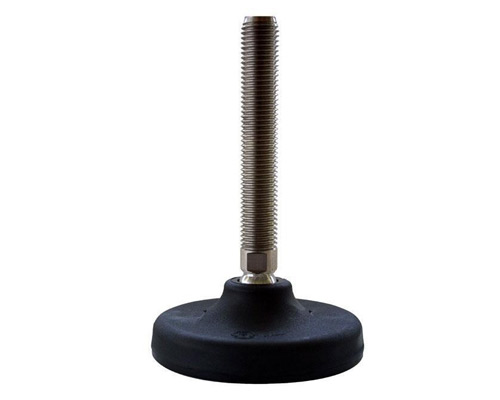

Levelling foot PA, Ø 123 mm, M20 x 100 mm Stainless steel, Drills, NBR

EAN 4061408016075

Type 45810175

Optimize your equipment stability with our 123 mm diameter PA leveling foot. Featuring a robust stainless steel spindle and a static load capacity of 35,000 N, it ensures reliable support and precise leveling in demanding environments.

High static load capacity of 35,000 N ensures stability and reliability in demanding applications.
Durable stainless steel spindle provides excellent corrosion resistance and long-lasting performance.
Polyamide footplate, with a diameter of 123 mm, designed for optimum load distribution and floor protection.
Articulated screw with a 30° adjustment angle allows for precise leveling on uneven surfaces.
Equipped with two bore holes (Ø 12.5 mm) for secure floor mounting, enhancing installation flexibility and stability.

Quantity	Price
From 1	€11.56*
From 5	€10.33*
From 15	€9.23*
From 50	€9.04*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€11.56* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	20
Spindle length (mm):	100
Balancing angle:	30°

Product description

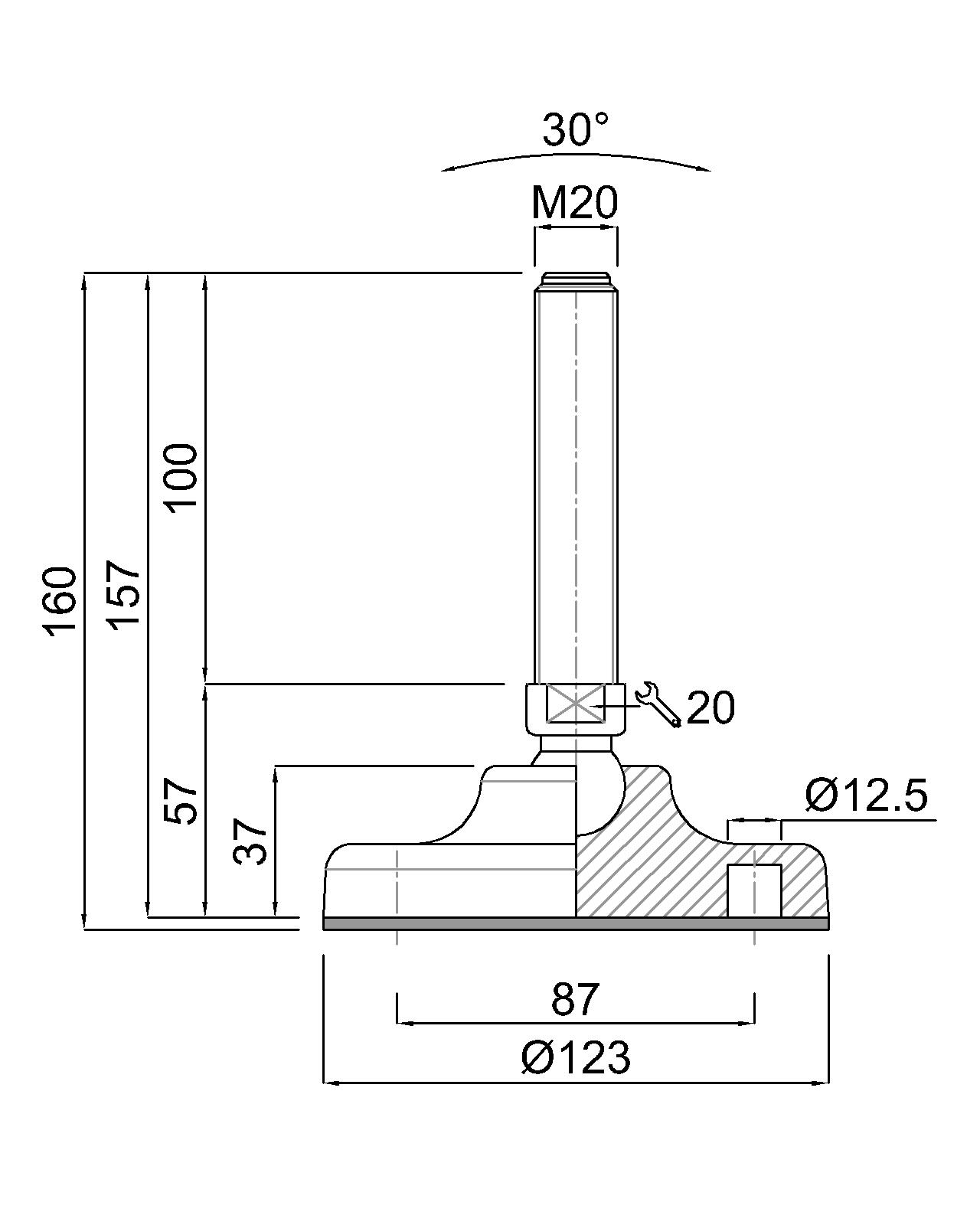

Levelling foot Polyamide, Ø 123 mm, M20 x 100 mm, Stainlees steel, Total height 160 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
