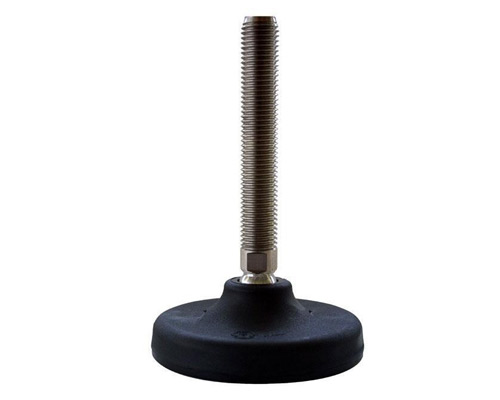

Levelling foot PA, Ø 123 mm, M20 x 250 mm Stainless steel, Drills
Optimize your machinery setup with our durable Levelling Foot PA, featuring a 123 mm diameter and M20 x 250 mm stainless steel spindle. Designed for stability, it supports static loads of up to 35,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€26.23*
|
| From 5 |
€23.44*
|
| From 15 |
€20.93*
|
| From 50 |
€20.51*
|
Currently sold out, Refill time: 5 days
Accessories
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 250 |
| Balancing angle: | 30° |
| Hygiene: | No |

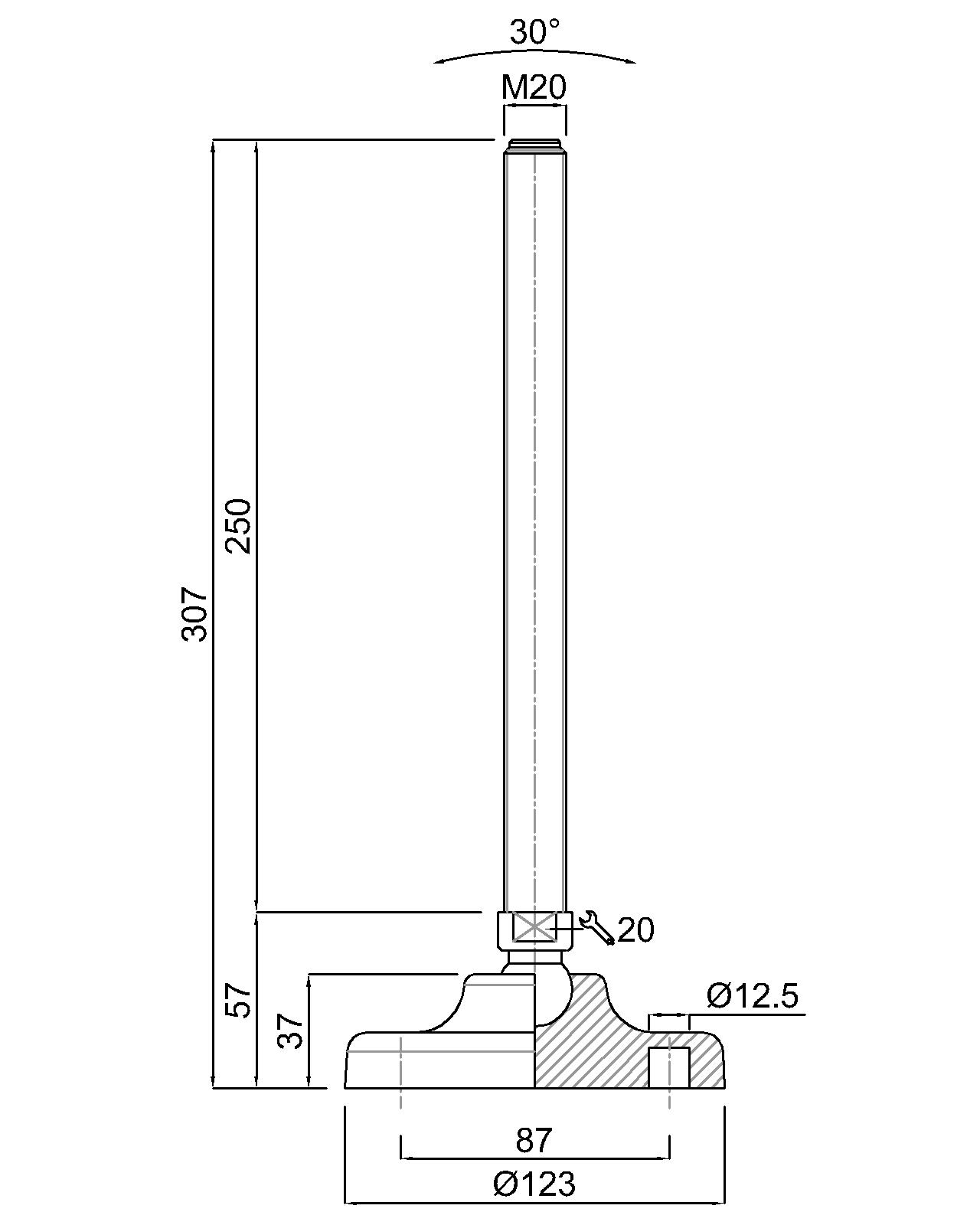

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
