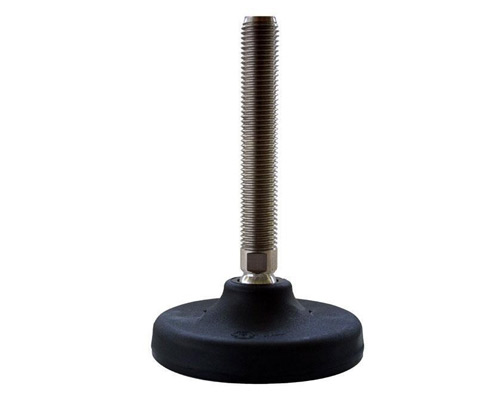

Levelling foot PA, Ø 123 mm, M16 x 125 mm Stainless steel, Drills

EAN 4061408015160

Type 45810160

Optimize your machinery with our PA Levelling Foot, featuring a 123 mm diameter, M16 stainless steel spindle, and static load capacity of 35,000 N for exceptional stability.

Robust design with a total height of 182 mm and a stainless steel spindle ensuring durability and strength under static loads of up to 35,000 N.
Polyamide leveling foot with a diameter of 123 mm, providing a stable base for various applications.
Articulated screw functionality enables adjustment at an angle of 30°, facilitating precise leveling.
Bore holes with a diameter of 12.5 mm allow for secure and versatile mounting options.
Designed to accommodate footplate diameters ranging from 111 mm to 130 mm, ensuring compatibility with a variety of surfaces.

Quantity	Price
From 1	€8.70*
From 5	€7.78*
From 15	€6.95*
From 50	€6.81*

*Prices excl. VAT plus shipping costs

24 on stock, Refill time: 5 days

€8.70* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	125
Balancing angle:	30°
Hygiene:	No

Product description

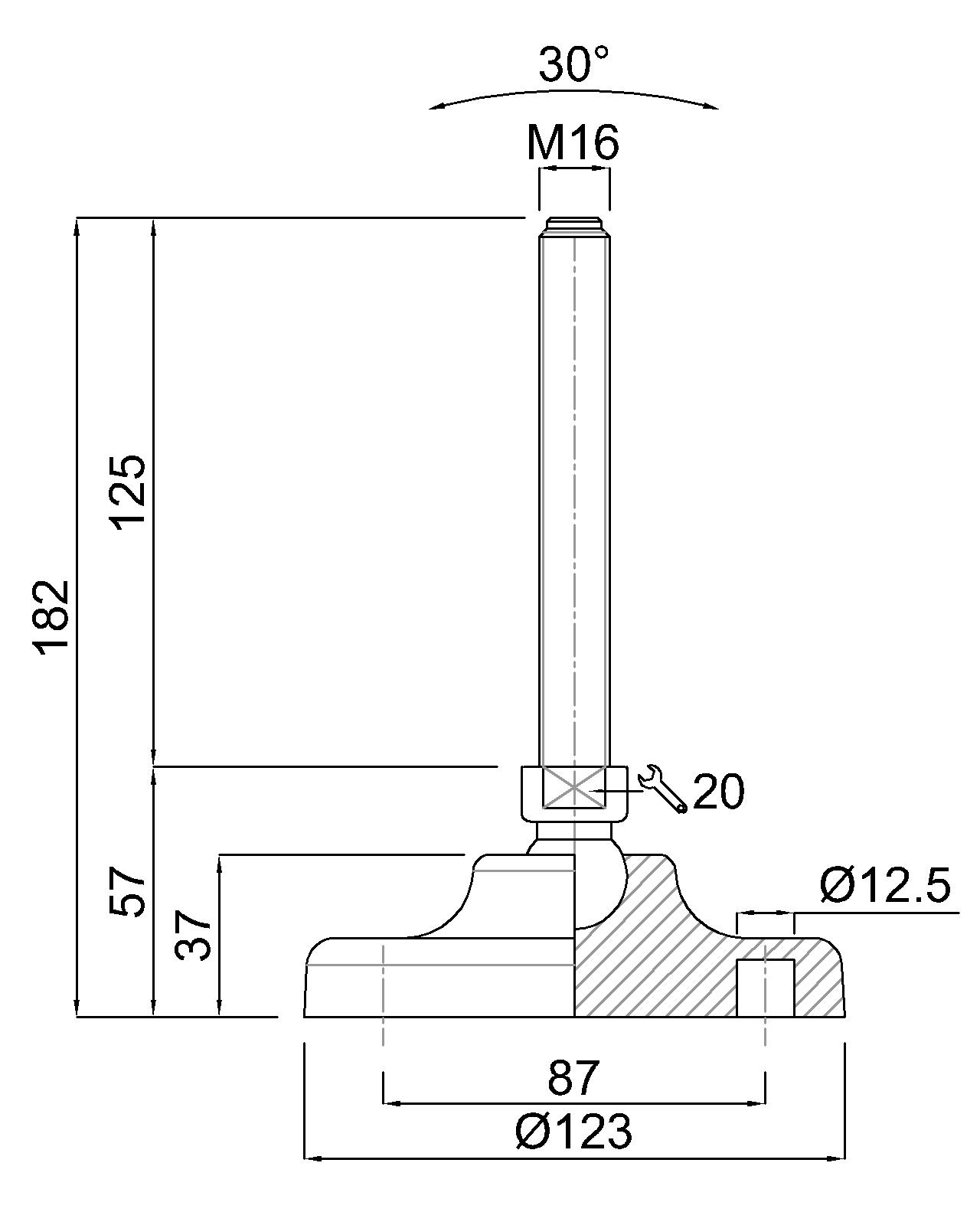

Levelling foot Polyamide, Ø 123 mm, M16 x 125 mm, Stainlees steel, Total height 182 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
