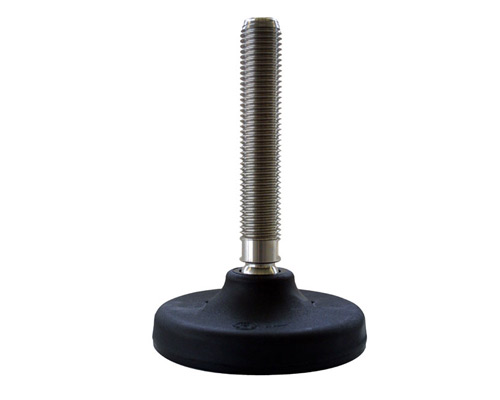

Levelling foot PA, Ø 123 mm, M24 x 200 mm Stainless steel, Drills, NBR

EAN 4061408020386

Type 45810201

Optimize your equipment stability with our Stainless Steel Levelling Foot, featuring a 123 mm diameter and 35,000 N static load capacity. Durable and adjustable, it ensures precise leveling in diverse applications.

Robust levelling foot made of polyamide with a diameter of 123 mm for enhanced stability and durability.
M24 stainless steel spindle with a length of 200 mm ensuring high strength and resistance to corrosion.
Capable of supporting static loads up to 35,000 N, making it ideal for heavy-duty applications.
Features an articulated screw adjustment of 30° for optimal leveling in uneven surfaces.
Equipped with two bore holes of Ø 12.5 mm for secure mounting and anti-slip protection provided by black NBR material.

Quantity	Price
From 1	€24.35*
From 5	€21.76*
From 15	€19.43*
From 50	€19.04*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€24.35* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	24
Spindle length (mm):	200
Balancing angle:	30°

Product description

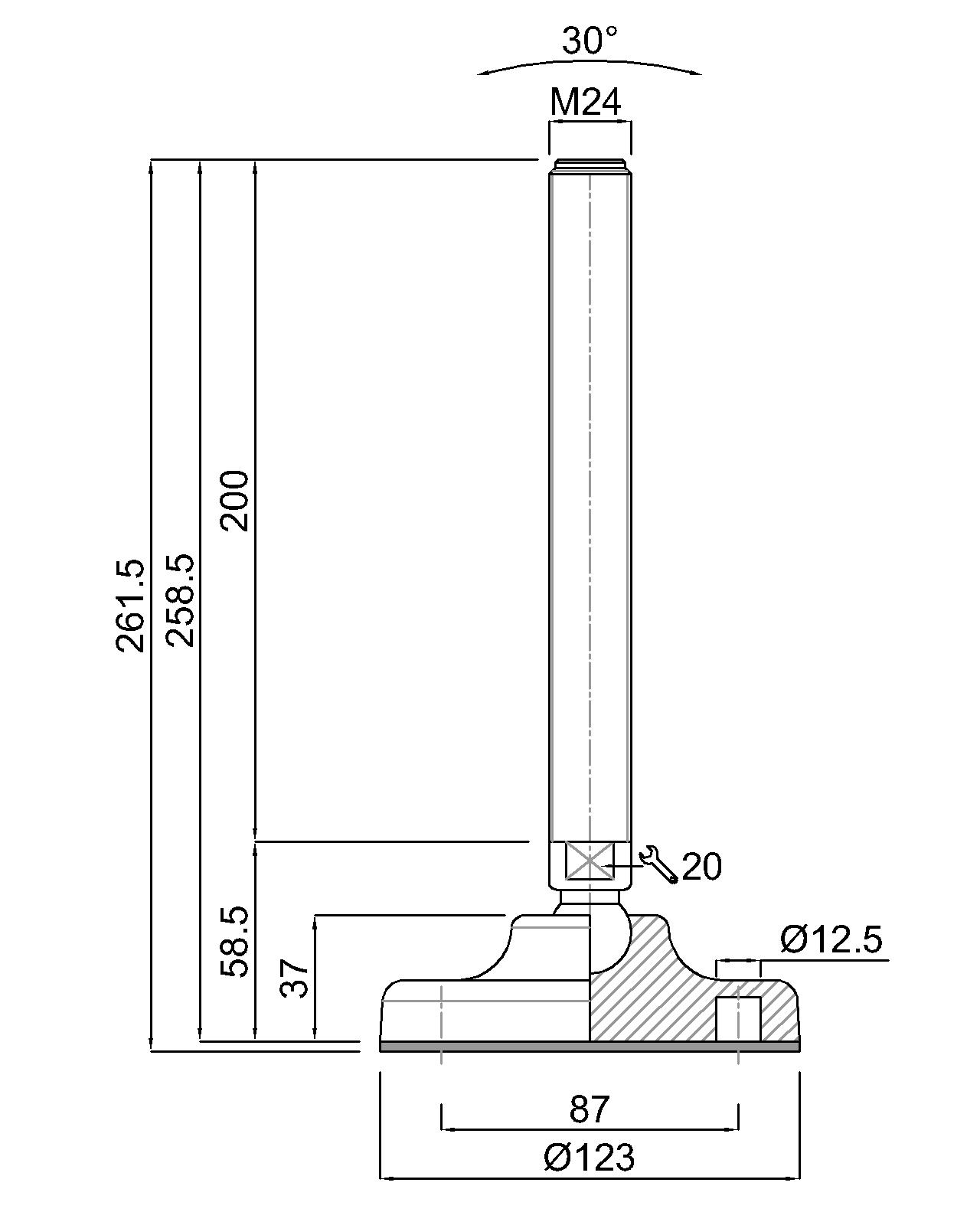

Levelling foot Polyamide, Ø 123 mm, M24 x 200 mm, Stainlees steel, Total height 286 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
