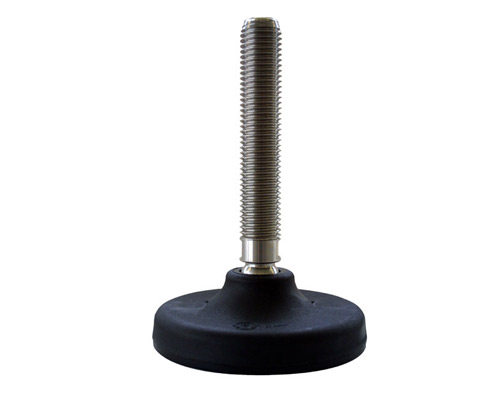

Levelling foot PA, Ø 123 mm, M30 x 150 mm Stainless steel, Drills, NBR

EAN 4061408015740

Type 45810211

Optimize your machinery support with our PA Levelling Foot. Featuring a robust stainless steel spindle and articulated design, it handles static loads up to 35,000 N efficiently.

High load capacity of up to 35,000 N, ensuring stability under significant weight
Made of durable stainless steel for enhanced corrosion resistance and longevity
Polyamide base with a diameter of 123 mm, designed for optimal weight distribution
Articulated screw mechanism allowing for adjustment up to 30°, accommodating uneven surfaces
Equipped with two bore holes (Ø 12.5 mm) for secure ground attachment and reliable installation

Quantity	Price
From 1	€24.03*
From 5	€21.47*
From 15	€19.17*
From 50	€18.79*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€24.03* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Stainless steel
Ø spindle (mm):	30
Spindle length (mm):	150
Balancing angle:	30°

Product description

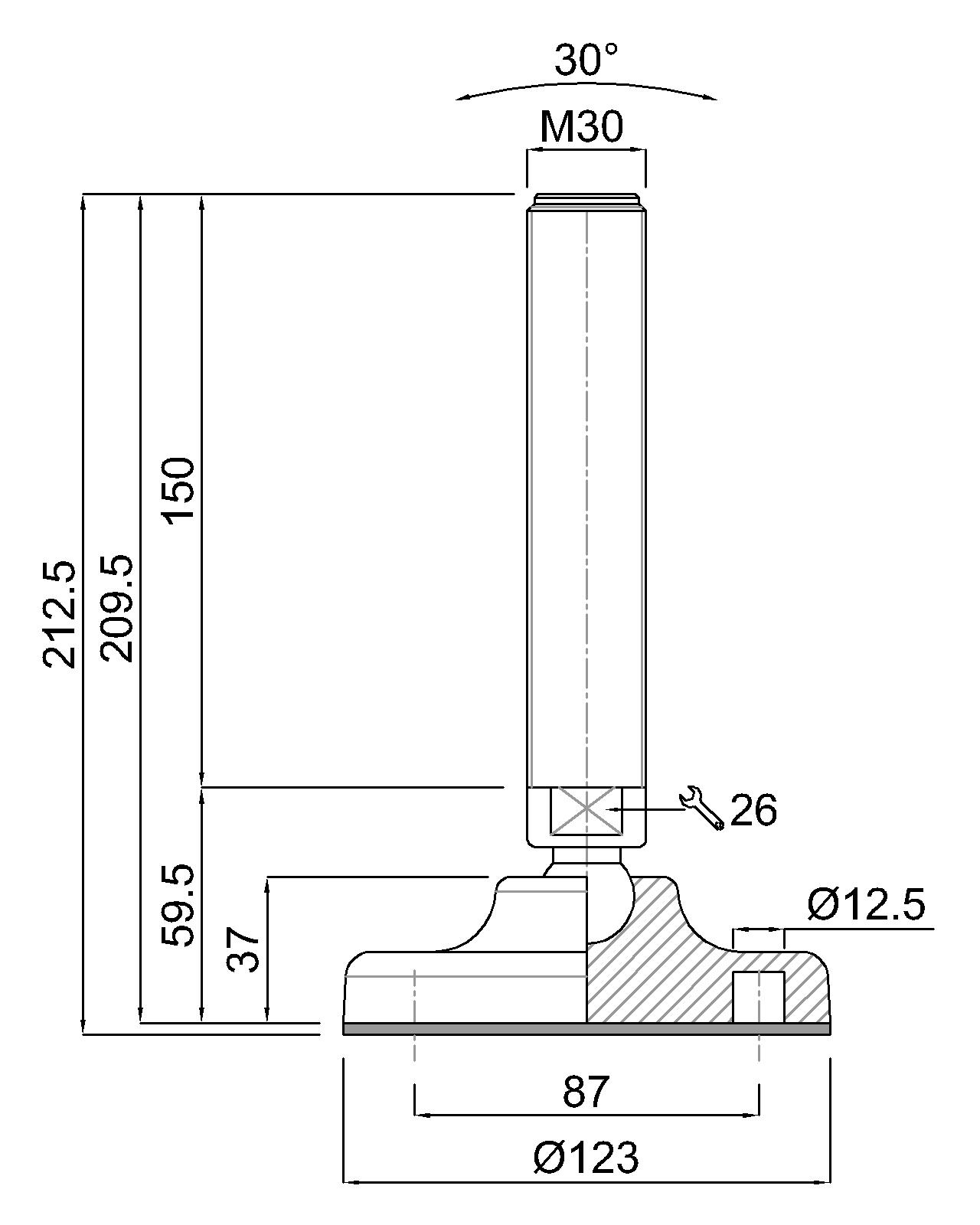

Levelling foot Polyamide, Ø 123 mm, M30 x 150 mm, Stainlees steel, Total height 212 mm, Articulated screw 30°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
