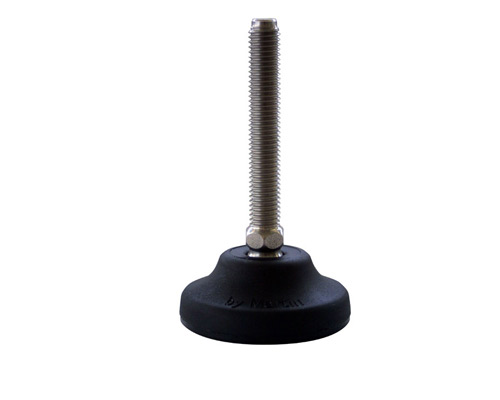

Levelling foot PA, Ø 65 mm, M12 x 150 mm Stainless steel

EAN 4061408083923

Type 45810056/12

Enhance stability with our durable 65 mm levelling foot, featuring a robust stainless steel spindle and a versatile articulated screw design, supporting static loads up to 11,000 N.

Robust design with a load capacity of 11,000 N, ensuring stability and support for heavy machinery.
Articulated screw allows for an adjustable leveling angle of 30°, optimizing alignment on uneven surfaces.
Durable construction with a stainless steel spindle and polyamide foot, offering resistance to corrosion and wear.
Footplate diameter of 65 mm provides enhanced stability and load distribution.
Total height of 183 mm, making it suitable for various applications and configurations in industrial settings.

Quantity	Price
From 1	€7.90*
From 5	€7.06*
From 15	€6.30*
From 50	€6.17*

*Prices excl. VAT plus shipping costs

23 on stock, Refill time: 5 days

€7.90* / piece

Our payment methods:

Accessories

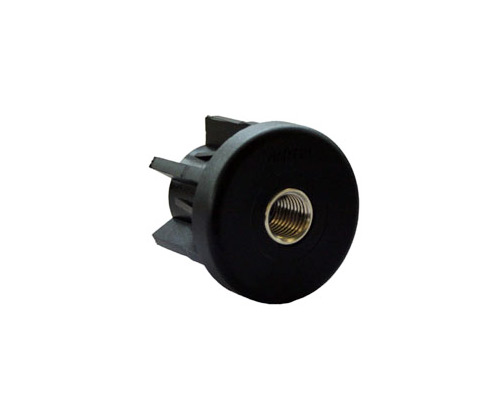

Round plug polyamide Ø 30x1, M12, stainless steel insert

Type No.: 45817001I

From €4.85*

Square plug polyamide 40x40, M12, stainless steel insert

Type No.: 45817044I

From €5.21*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	51-70
Vibration damping:	No
Material spindle:	Stainless steel
Ø spindle (mm):	12
Spindle length (mm):	150
Balancing angle:	30°
Hygiene:	No

Product description

Levelling foot Polyamide, Ø 65 mm, M12 x 150 mm, Stainlees steel, Total height 183 mm, Articulated screw 30°, Static load 11.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
