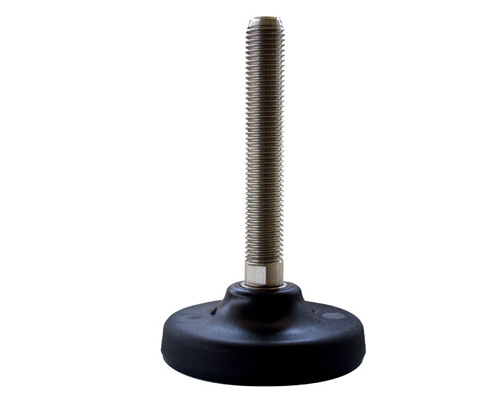

Levelling foot PA, Ø 103 mm, M20 x 200 mm Stainless steel, Drills, NBR
Discover our high-performance Levelling Foot made of durable polyamide and stainless steel, featuring a 103 mm diameter and an articulated screw for precise adjustments. Ideal for robust applications with a static load capacity of 35,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€22.48*
|
| From 5 |
€20.09*
|
| From 15 |
€17.94*
|
| From 50 |
€17.58*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 91-110 |
| Ground fastening: | 2 mounting holes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 4° |

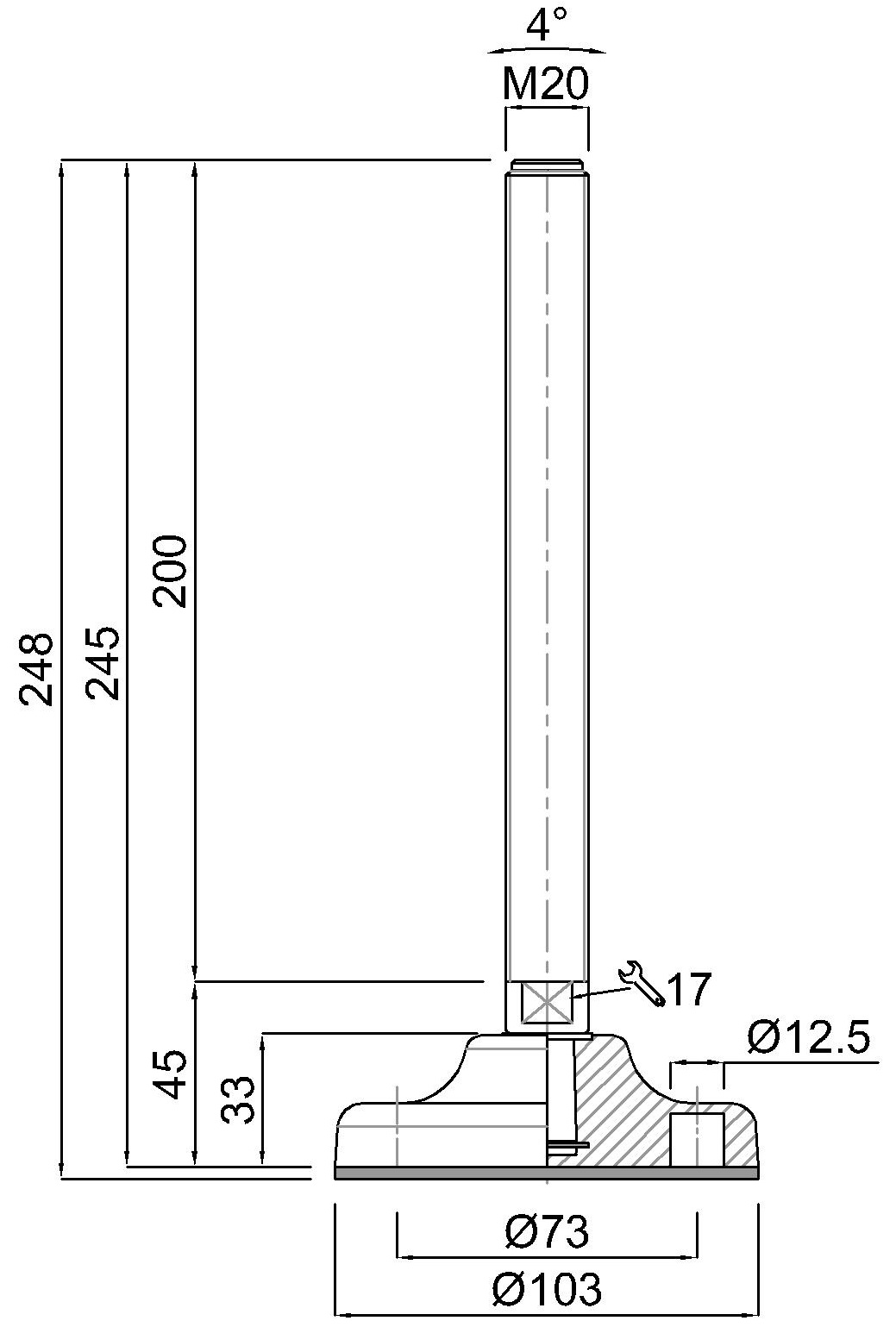

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
