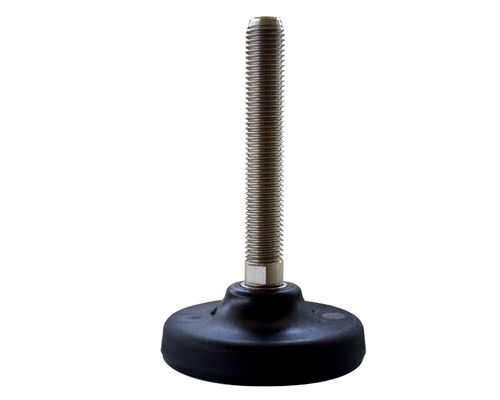

Levelling foot PA, Ø 123 mm, M16 x 150 mm Stainless steel, Drills

EAN 4061408075386

Type 45812822/20

Ensure stability and precision with our High-Performance Levelling Foot, featuring a durable polyamide base, stainless steel spindle, and a static load capacity of 40,000 N. Ideal for engineering applications.

Robust polyamide footplate with a diameter of 123 mm ensures durability and resistance to wear and tear.
M16 stainless steel spindle with a length of 150 mm offers excellent strength and corrosion resistance.
Articulated screw mechanism allows for a compensation angle of 4°, accommodating uneven surfaces.
Static load capacity of 40,000 N makes it suitable for heavy applications and industrial usage.
Two bore holes with a diameter of 12.5 mm enable secure and versatile mounting options.

Quantity	Price
From 1	€14.78*
From 5	€13.20*
From 15	€11.79*
From 50	€11.55*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€14.78* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Stainless steel
Ø spindle (mm):	16
Spindle length (mm):	150
Balancing angle:	4°
Hygiene:	No

Product description

Levelling foot Polyamide, Ø 123 mm, M16 x 150 mm, Stainlees steel, Total height 200 mm, Articulated screw 4°, Bore holes Ø 12,5 mm, Static load 40.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
