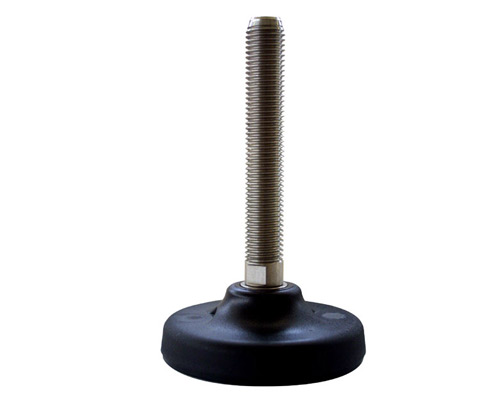

Levelling foot PA, Ø 123 mm, M24 x 200 mm Stainless steel, Drills

EAN 4061408034956

Type 45812888

Introducing our durable Levelling Foot, designed for precision and stability. Made from high-quality stainless steel and polyamide, it supports static loads up to 45,000 N, featuring a quick-install base with adjustable angles.

Constructed with a robust polyamide base, ensuring durability and resistance to wear and tear
Stainless steel spindle (Ø 24 mm, length 200 mm) provides excellent corrosion resistance and strength
Total height of 250 mm, designed for optimal stability and load distribution in various applications
Static load capacity of up to 45,000 N, accommodating heavy machinery and equipment
Features articulated screw with a 4° adjustment angle and two Ø 12.5 mm bore holes for secure ground attachment

Quantity	Price
From 1	€22.60*
From 5	€20.19*
From 15	€18.03*
From 50	€17.67*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€22.60* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123

Type No.: 458PROLD123

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Vibration damping:	no
Material spindle:	Stainless steel
Ø spindle (mm):	24
Spindle length (mm):	200
Balancing angle:	4°
Hygiene:	No

Product description

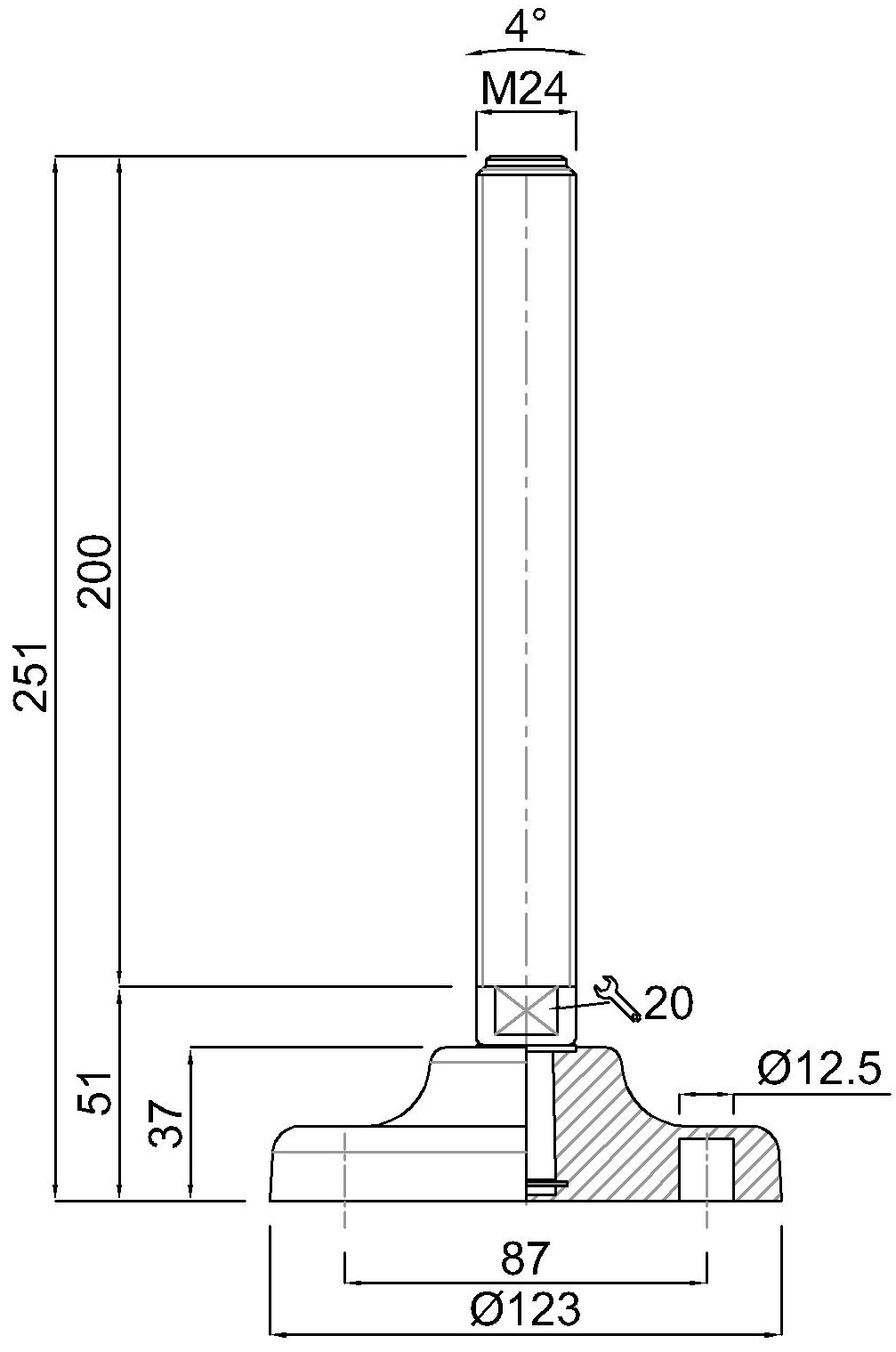

Levelling foot Polyamide, Ø 123 mm, M24 x 200 mm, Stainlees steel, Total height 250 mm, Articulated screw 4°, Bore holes Ø 12,5 mm, Static load 45.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
