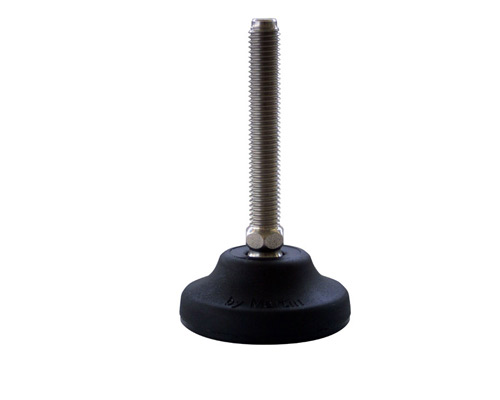

Levelling foot PA, Ø 65 mm, M14 x 175 mm Stainless steel
Discover our robust stainless steel levelling foot, featuring a 65 mm diameter polyamide base and an articulated screw for 30° adjustment. Capable of supporting static loads up to 15,000 N, it's perfect for precise stability in demanding engineering applications.
| Quantity | Price |
|---|---|
| From 1 |
€8.35*
|
| From 5 |
€7.46*
|
| From 15 |
€6.66*
|
| From 50 |
€6.53*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic |
| Anti-slip: | No |
| Ø range base plate (mm): | 51-70 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 14 |
| Spindle length (mm): | 175 |
| Balancing angle: | 30° |
| Hygiene: | No |

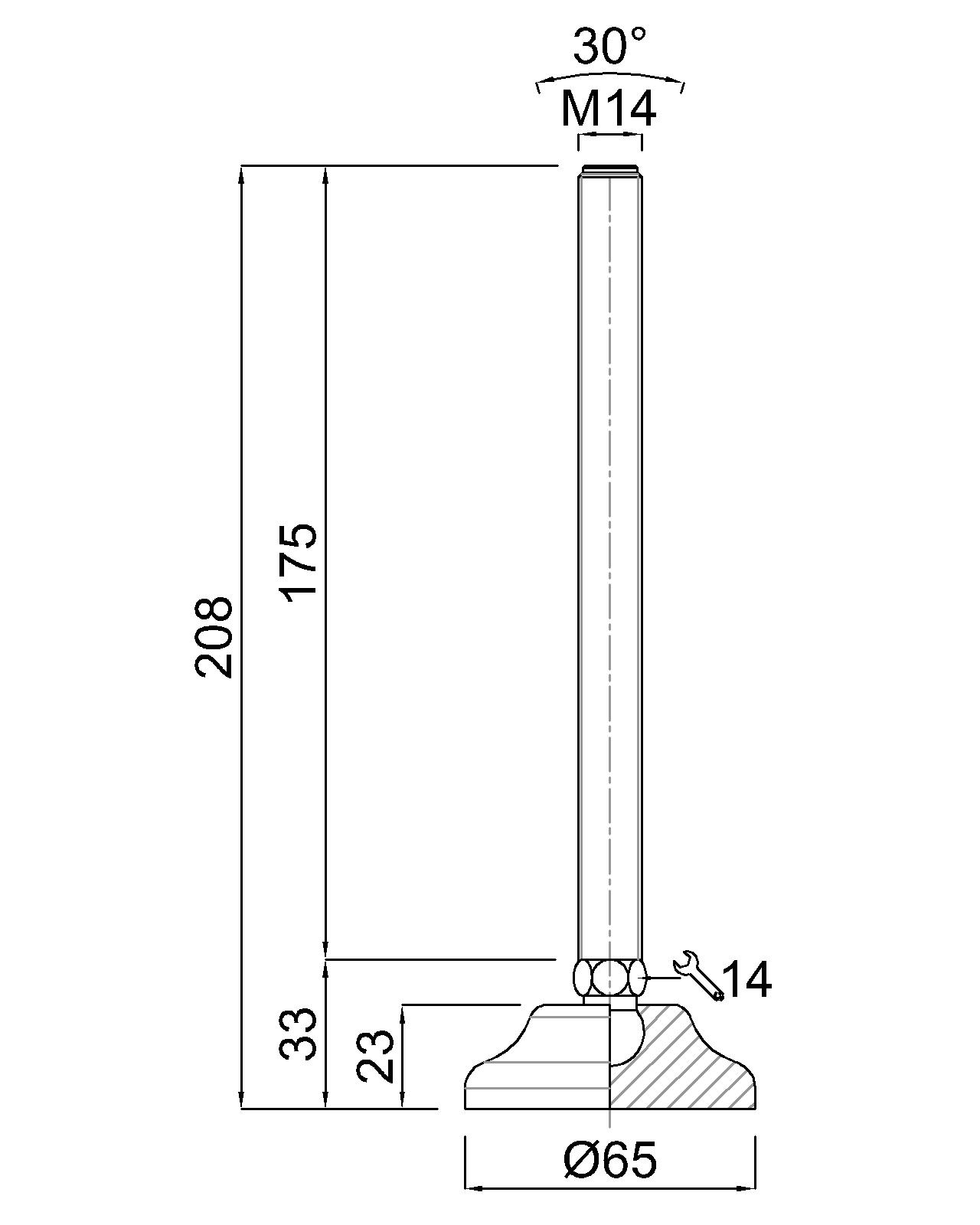

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
