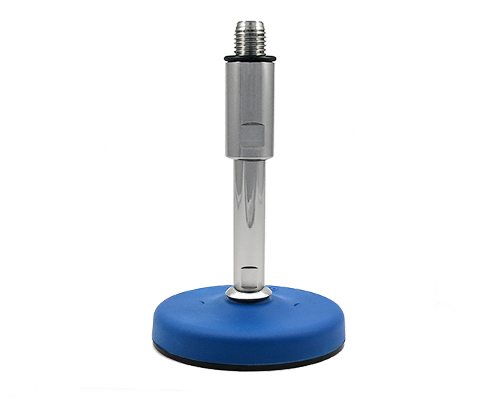

Levelling foot TEKNOCLEAN, PA blue Ø 123 mm, M24 x 150 mm Stainless steel, Drills, NBR
Introducing the TEKNOCLEAN Levelling Foot: precision-engineered with a blue PA base and stainless steel spindle. Enhanced hygiene-certified design ensures superior stability, with a static load capacity of 30,000 N and adjustable range of 65 mm.
| Quantity | Price |
|---|---|
| From 1 |
€33.49*
|
| From 5 |
€33.27*
|
| From 15 |
€32.40*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic blue |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 150 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | USDA |

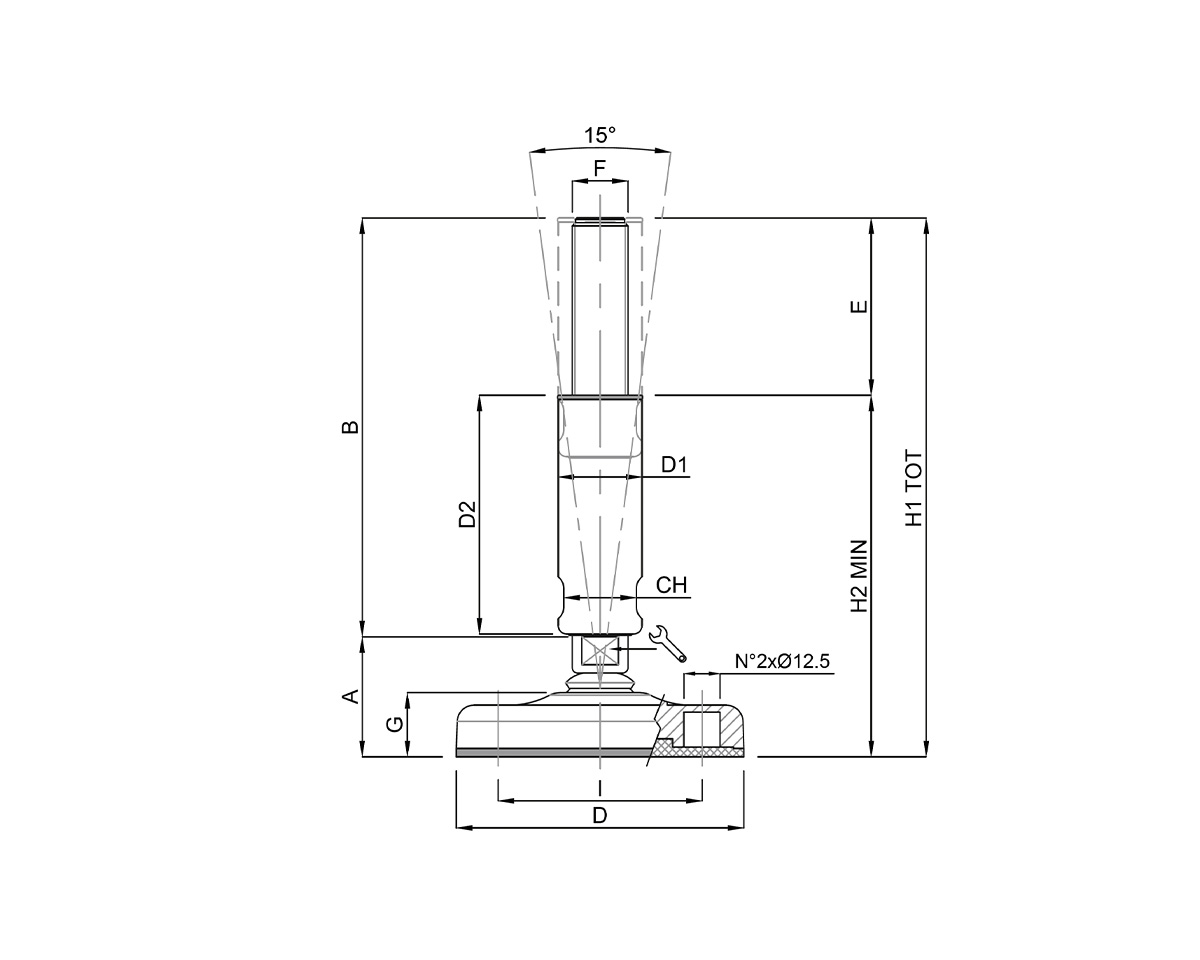

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
