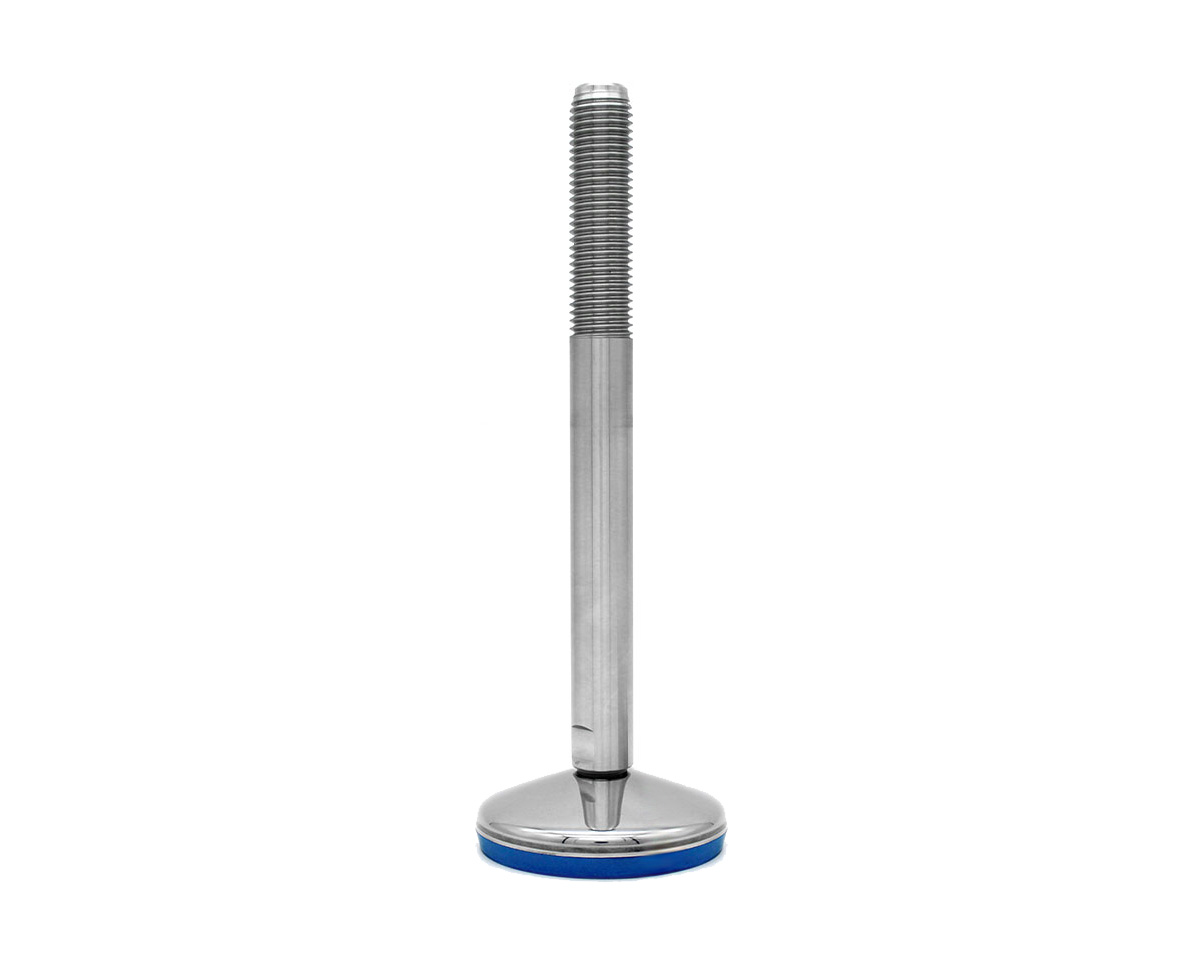

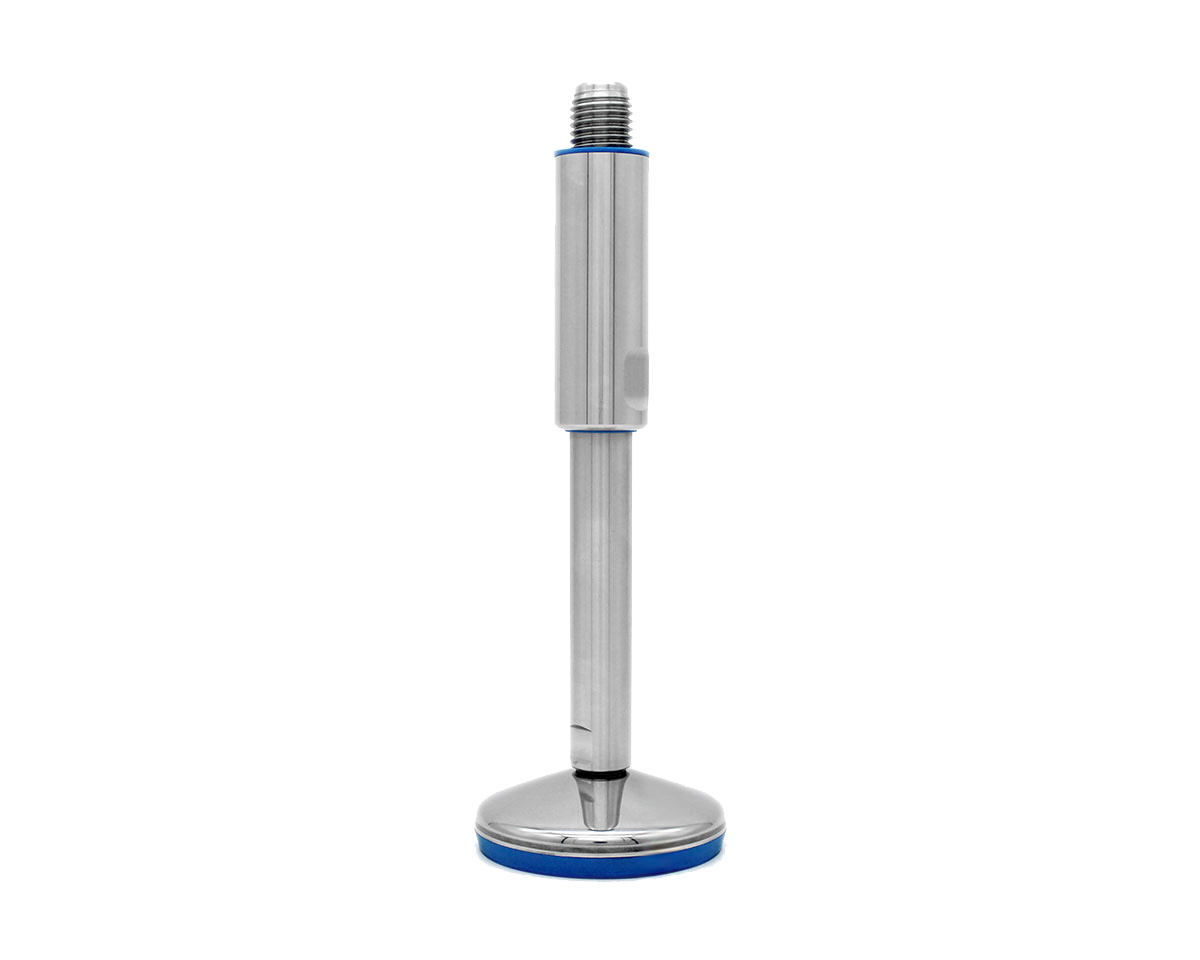

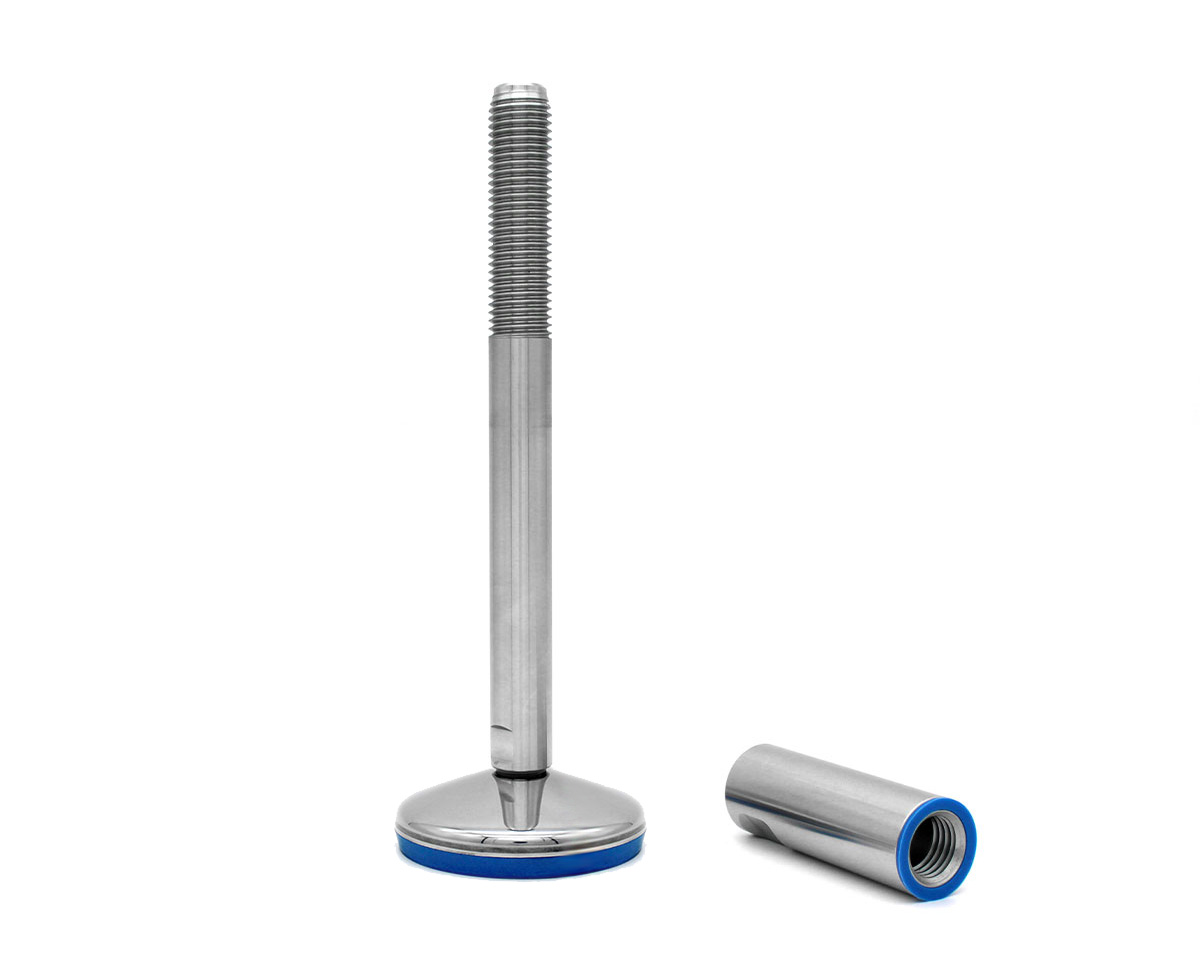

Levelling foot TEKNOCLEAN, Ø 100 mm Stainless steel, M16 x 150 mm, EPDM
The TEKNOCLEAN leveling foot combines robust stainless steel construction with an adjustable design, offering exceptional stability and hygienic compliance. Ideal for precision engineering applications with a static load capacity of 15,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€30.05*
|
| From 5 |
€29.85*
|
| From 15 |
€29.07*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 91-110 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 150 |
| Balancing angle: | 10° |
| Hygiene: | Yes |
| Hygiene certification: | USDA |

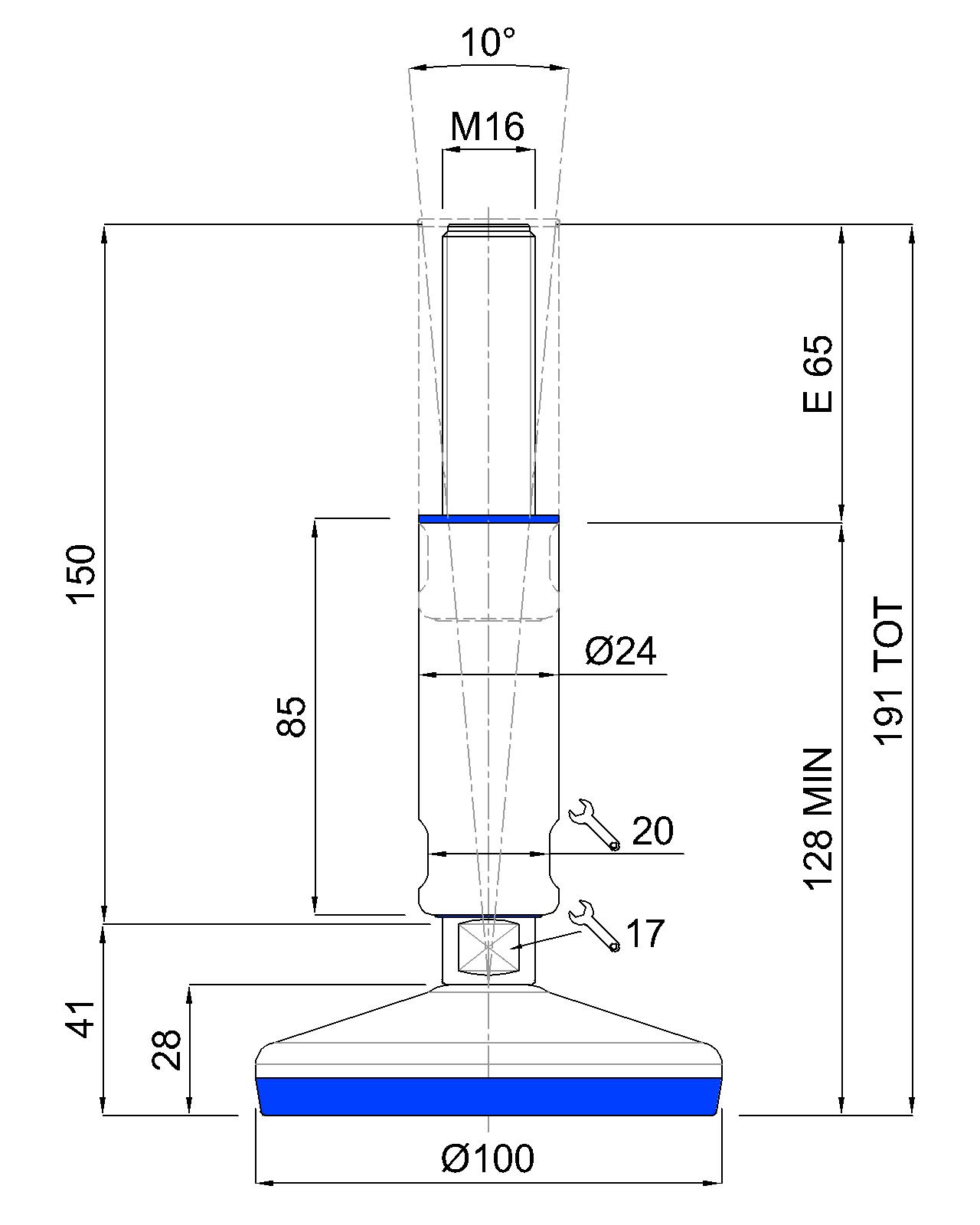

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
