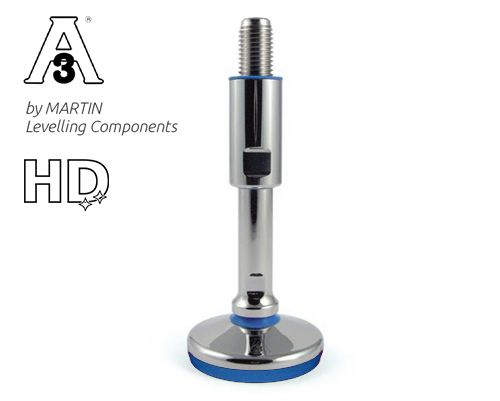

Levelling foot TEKNO-HYGIENIC 3-A, Ø 80 mm Stainless steel, M24 x 190 mm, EPDM
Optimize your installations with the TEKNO-HYGIENIC 3-A leveling foot. Made of stainless steel and featuring an EPDM blue anti-slip pad, it supports a static load of 20,000 N, ensuring stability and compliance with 3-A Sanitary Standards.
| Quantity | Price |
|---|---|
| From 1 |
€51.21*
|
| From 13 |
€50.10*
|
| From 41 |
€49.36*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | EPDM blue |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 190 |
| Balancing angle: | 15° |
| Hygiene: | Yes |
| Hygiene certification: | 3-A Sanitary Standard |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
