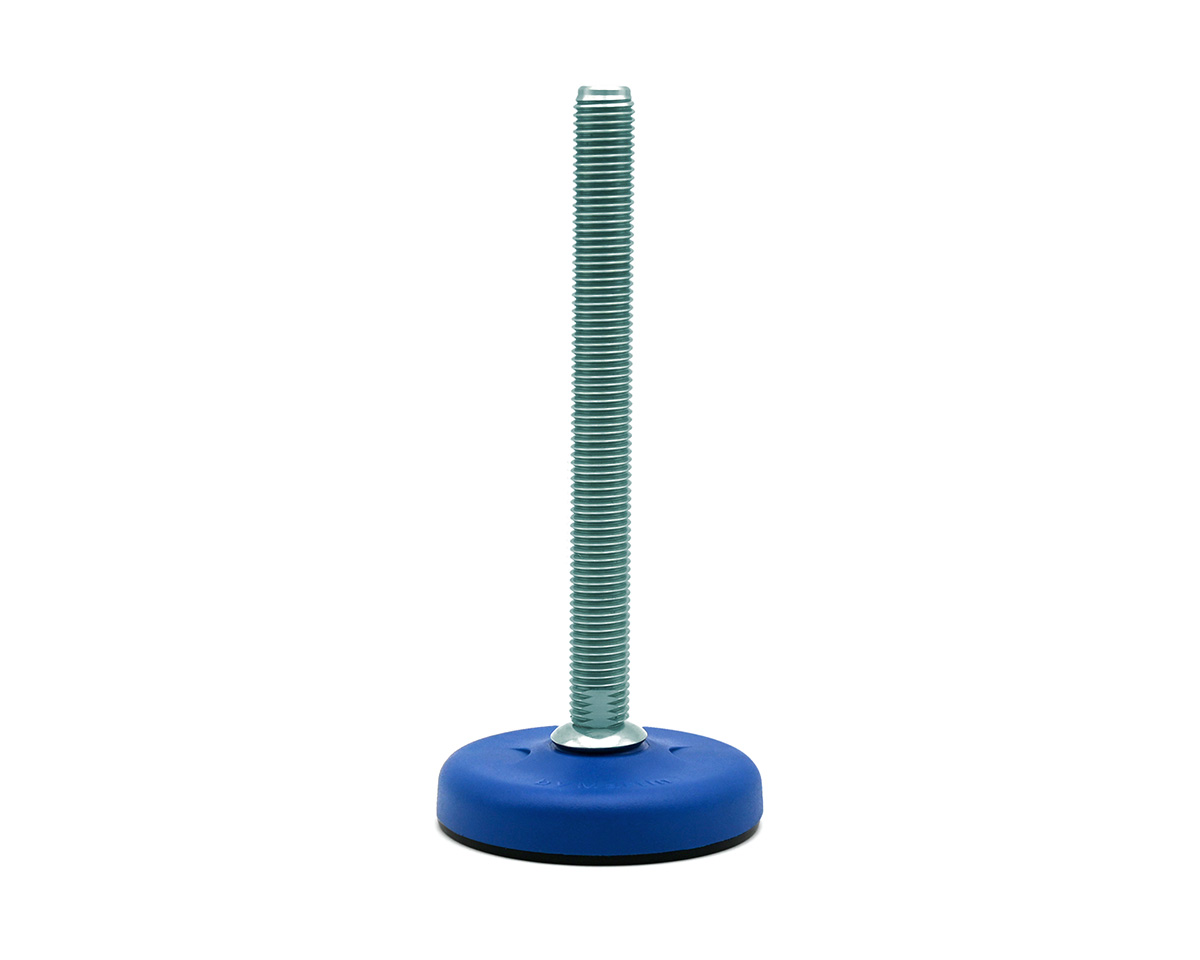

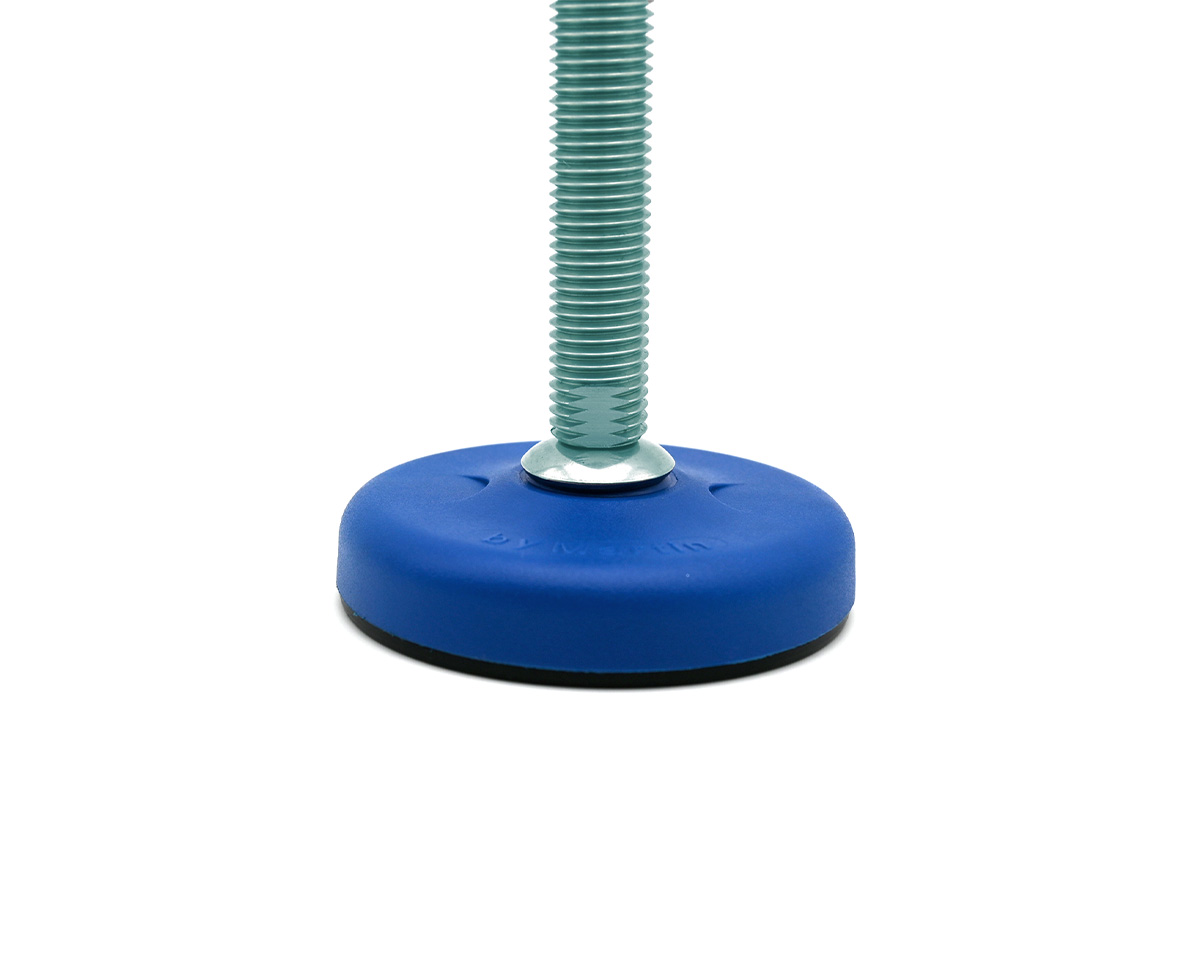

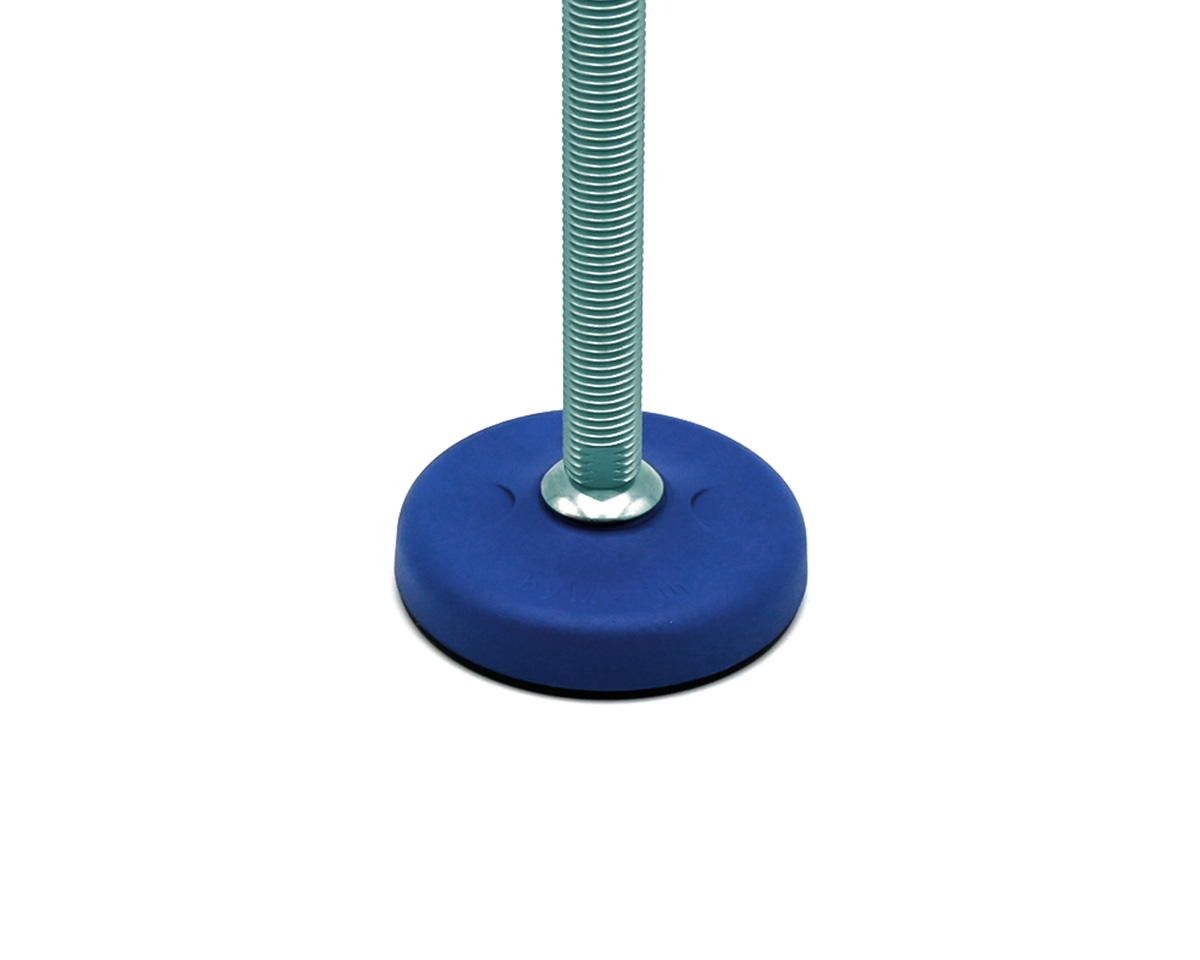

Levelling foot ECO16 PA blue, Ø 123 mm, M20 x 150 mm Steel, Drills, NBR
The ECO16 Levelling Foot features a durable blue polyamide base with a diameter of 123 mm and a galvanized steel spindle (M20 x 150 mm). Designed for robust support with a static load capacity of 35,000 N, it includes articulated screw adjustment up to 16° and anti-slip NBR pads for enhanced stability. Ideal for precise leveling in technical applications.
| Quantity | Price |
|---|---|
| From 1 |
€8.42*
|
| From 5 |
€8.06*
|
| From 15 |
€6.94*
|
| From 50 |
€6.59*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic blue |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Ground fastening: | 2 mounting holes |
| Vibration damping: | no |
| Material spindle: | Steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 150 |
| Balancing angle: | 16° |
| Hygiene: | No |
Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
