Levelling foot ECO16 PA Stainless steel, Ø 123 mm, M24 x 150 mm
Discover the ECO16 levelling foot, featuring a robust stainless steel spindle and a durable polyamide base. With a 191 mm total height and a 35,000 N static load capacity, it ensures stability and precision for your engineering needs.
| Quantity | Price |
|---|---|
| From 1 |
€18.29*
|
| From 5 |
€16.35*
|
| From 15 |
€14.60*
|
| From 50 |
€14.30*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic VA Cover |
| Anti-slip: | No |
| Ø range base plate (mm): | 111-130 |
| Vibration damping: | no |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 24 |
| Spindle length (mm): | 150 |
| Balancing angle: | 16° |
| Hygiene: | No |

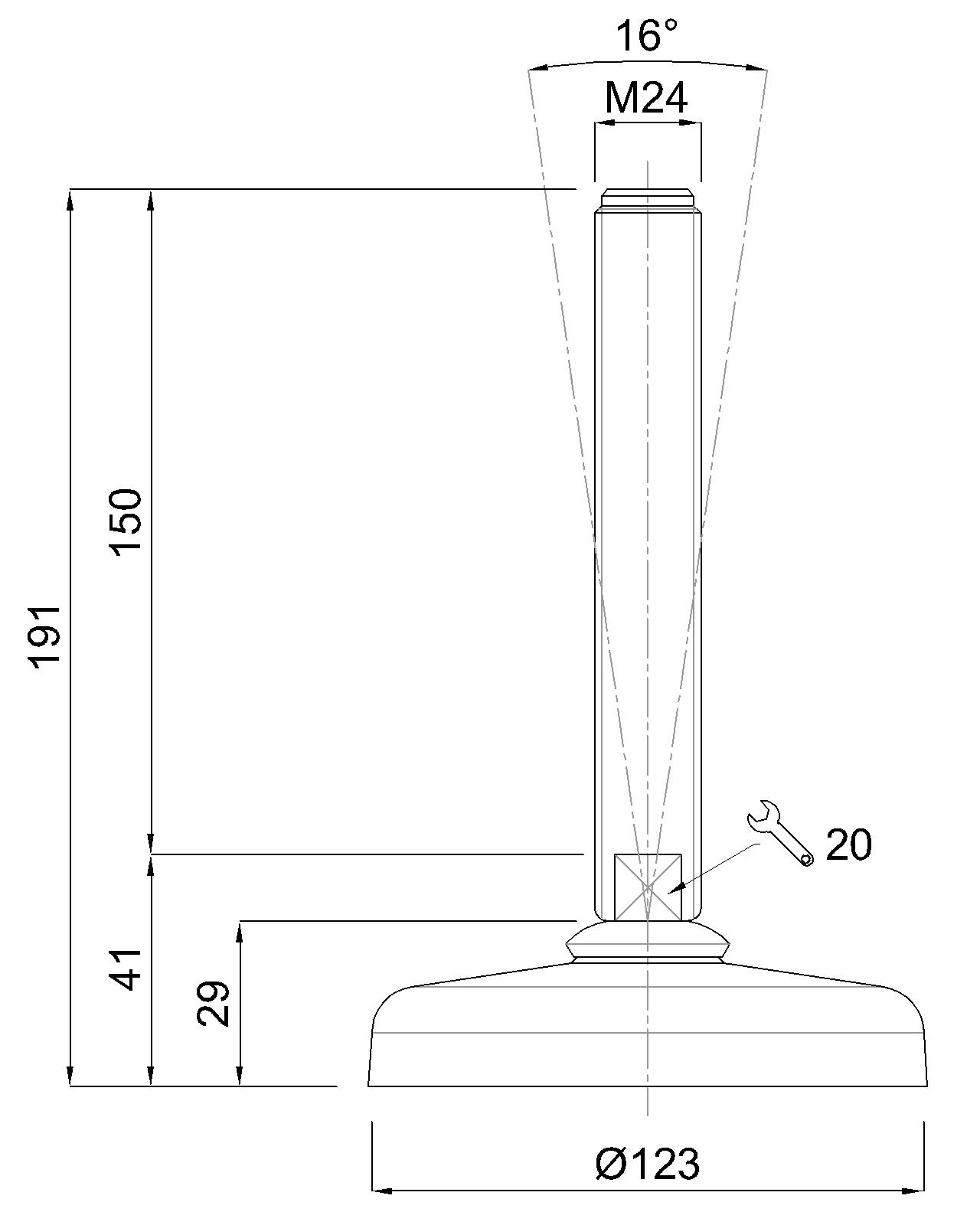

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
