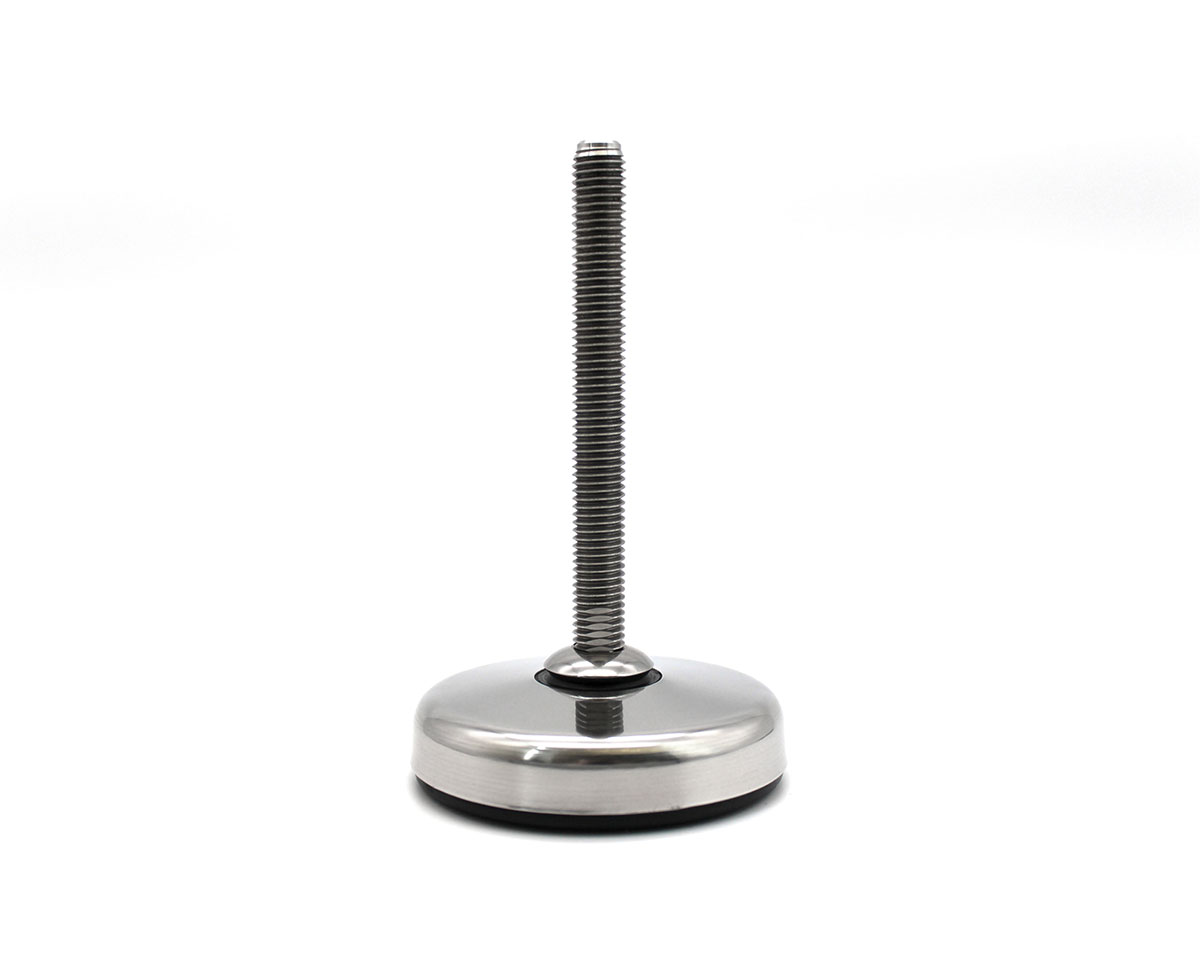

Levelling foot ECO30 PA Stainless steel, Ø 123 mm, M30 x 150 mm, NBR

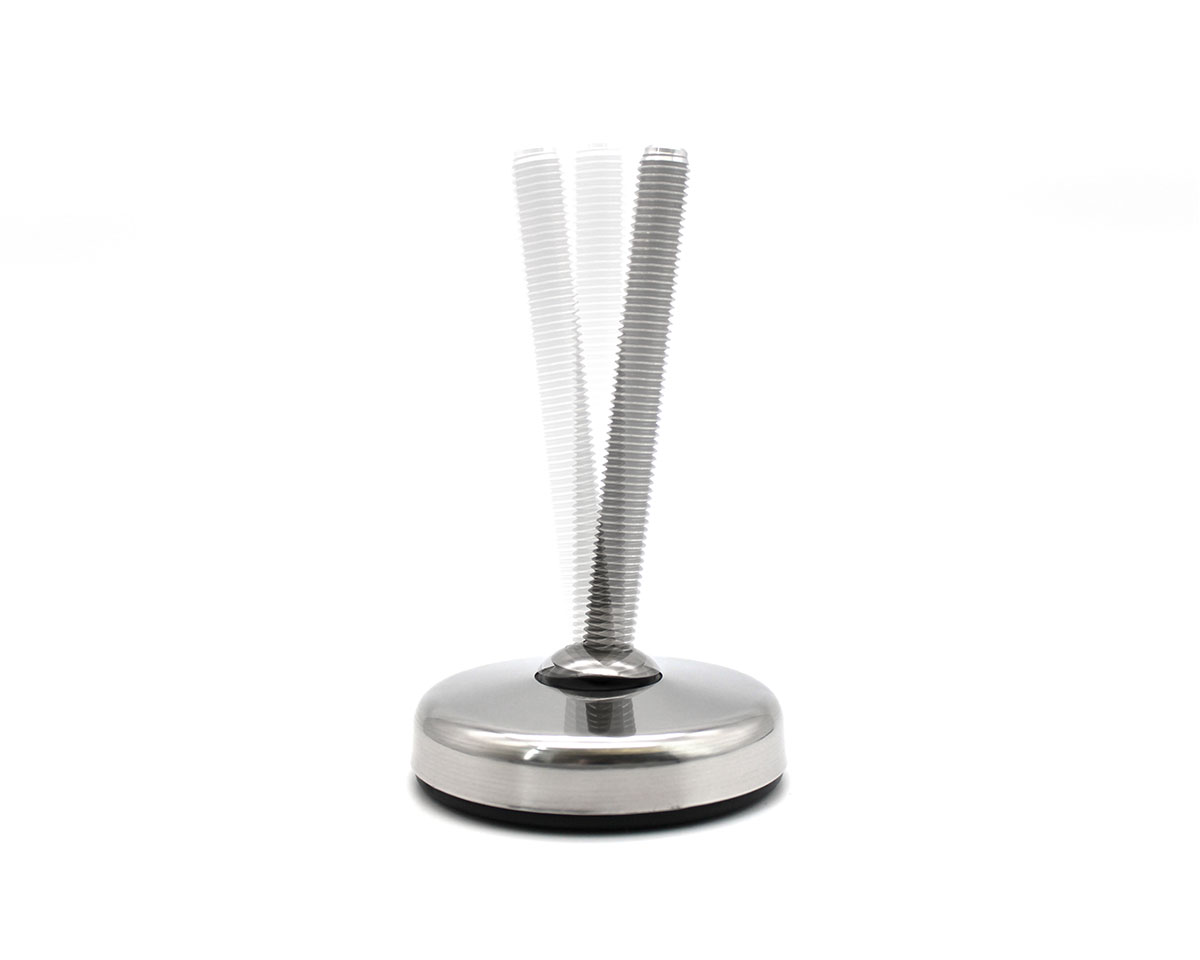

Optimize your equipment stability with the ECO30 leveling foot, featuring a durable stainless steel construction, articulated screw for 30° adjustment, and an impressive static load capacity of 25,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€26.68*
|
| From 5 |
€23.84*
|
| From 15 |
€21.29*
|
| From 50 |
€20.86*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic VA Cover |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 111-130 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 30 |
| Spindle length (mm): | 150 |
| Balancing angle: | 30° |

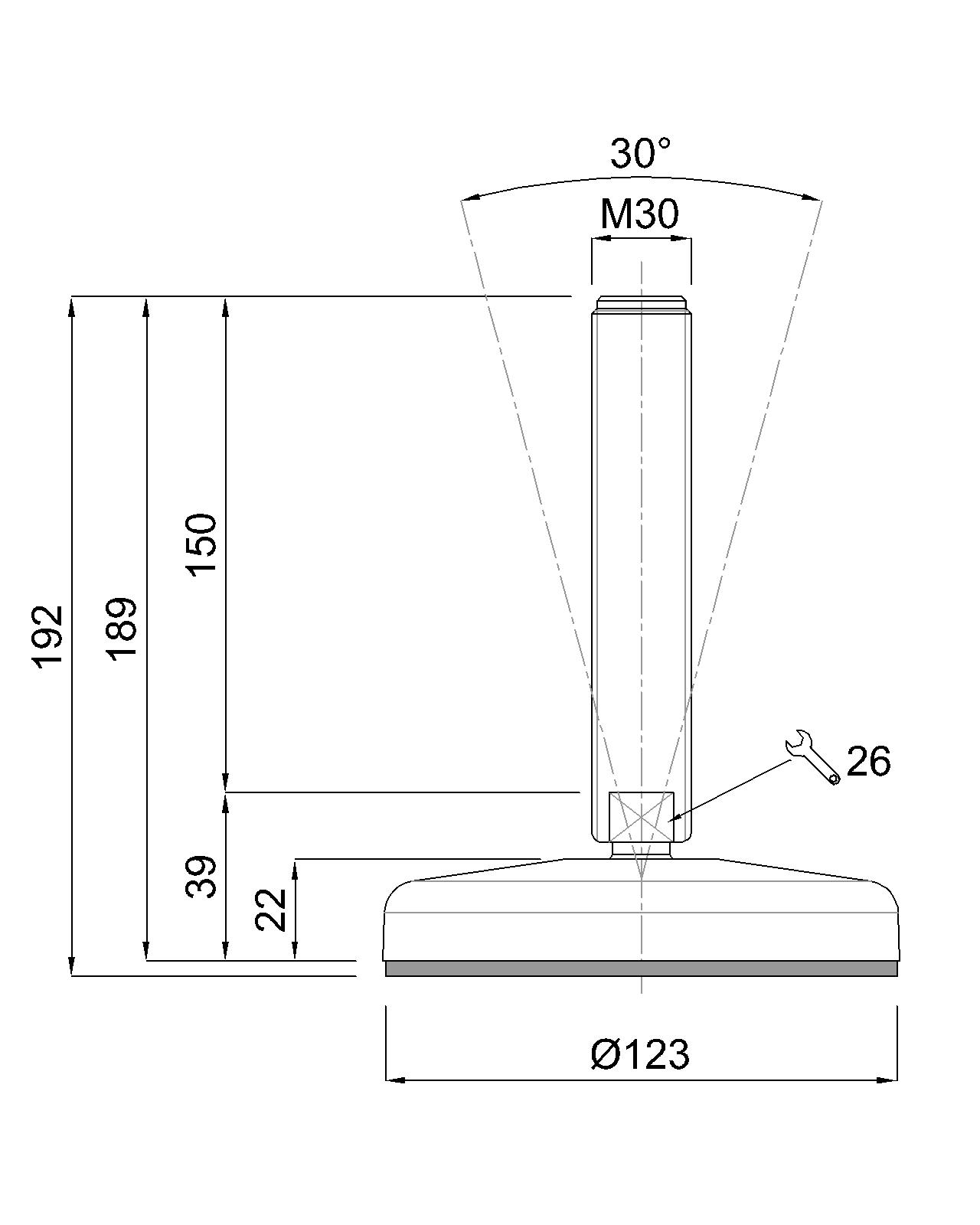

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
