Levelling foot ECO30 PA Stainless steel, Ø 83 mm, M20 x 200 mm, NBR
Discover the ECO30 levelling foot, featuring a robust stainless steel spindle and NBR anti-slip pad, ideal for precise adjustments with a static load capacity of 18,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€16.15*
|
| From 5 |
€14.43*
|
| From 15 |
€12.89*
|
| From 50 |
€12.63*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Plastic VA Cover |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 200 |
| Balancing angle: | 30° |

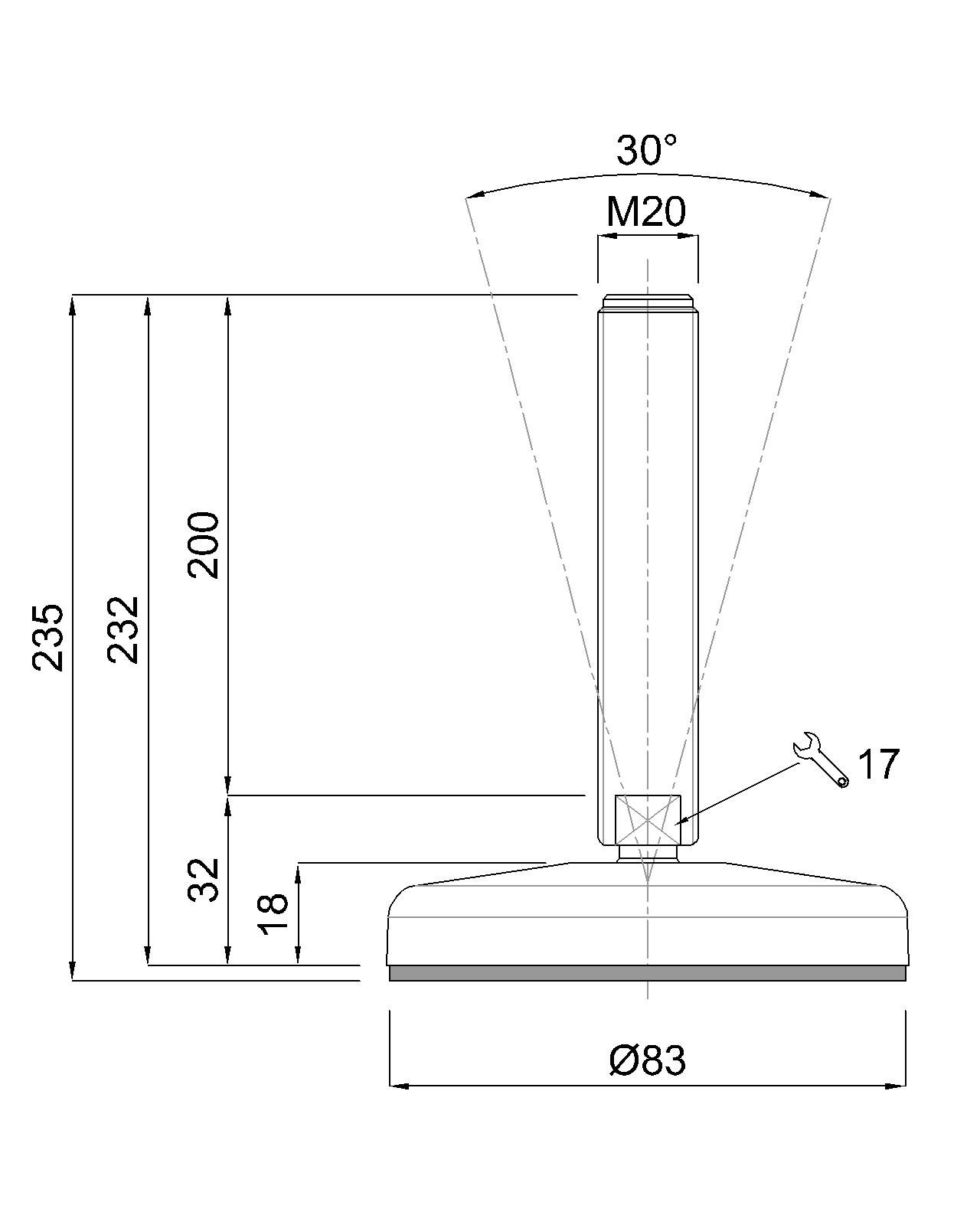

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
