Levelling foot PA, Ø 50 mm, M10 x 100 mm Stainless steel

EAN 4061408018130

Type 45810024

Discover our durable PA Levelling Foot with a 50 mm diameter and M10 x 100 mm stainless steel spindle. Designed for precision, it supports static loads up to 11,000 N.

Durable levelling foot made of high-quality polyamide, ensuring exceptional resistance to wear and tear
Stainless steel spindle (M10 x 100 mm) provides superior strength and corrosion resistance
Designed for a total height of 131 mm, perfectly suited for various applications requiring precise leveling
Articulated screw angle of 30° allows for flexible adjustment and optimal performance on uneven surfaces
Capable of supporting a static load of up to 11,000 N, making it ideal for heavy-duty industrial use

Quantity	Price
From 1	€6.13*
From 5	€5.48*
From 15	€4.89*
From 50	€4.79*

*Prices excl. VAT plus shipping costs

5 on stock, Refill time: 5 days

€6.13* / piece

Our payment methods:

Accessories

Round plug polyamide Ø 38, M10, stainless steel insert

Type No.: 45817004I

From €4.80*

Square plug polyamide 35 x 35, M10, stainless steel insert

Type No.: 45817038I

From €5.03*

Product properties

Footplate material:	Plastic
Anti-slip:	No
Ø range base plate (mm):	41-50
Vibration damping:	no
Material spindle:	Stainless steel
Ø spindle (mm):	10
Spindle length (mm):	100
Balancing angle:	30°
Hygiene:	No

Product description

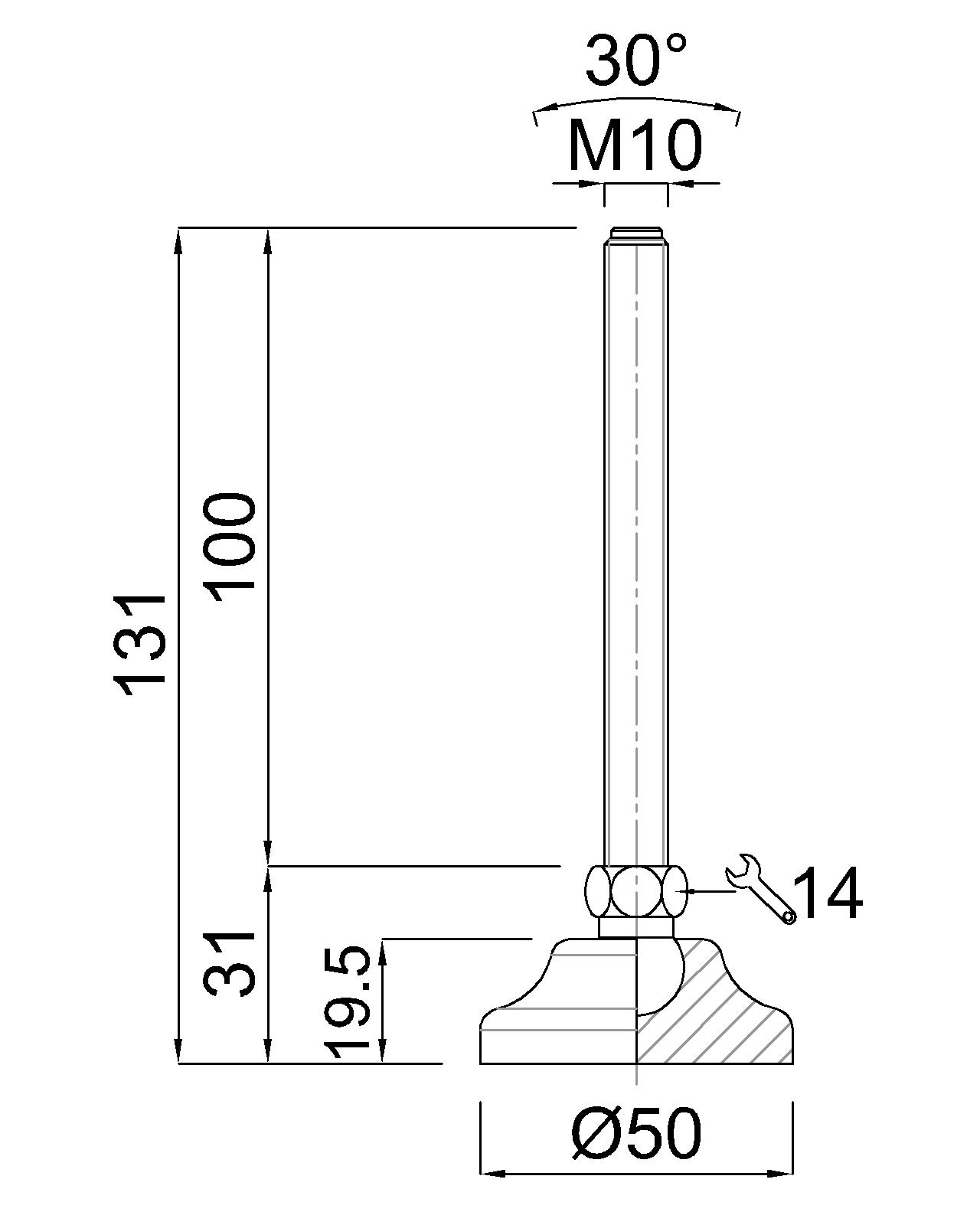

Levelling foot Polyamide, Ø 50 mm, M10 x 100 mm, Stainlees steel, Total height 131 mm, Articulated screw 30°, Static load 11.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
