Levelling foot ANTIVIBRATION, Ø 80 mm Steel, M12x1,25 x 100 mm, NBR
Enhance your machinery's stability with our Ø 80 mm antivibration leveling foot. Designed for dynamic loads up to 2,500 N, it features adjustable height, durable galvanized steel, and non-slip NBR for optimal performance.
| Quantity | Price |
|---|---|
| From 1 |
€20.31*
|
| From 5 |
€20.04*
|
| From 15 |
€19.77*
|
| From 50 |
€19.10*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 71-90 |
| Vibration damping: | Yes |
| Material spindle: | Steel |
| Ø spindle (mm): | 12 |
| Spindle length (mm): | 100 |
| Balancing angle: | 0° |

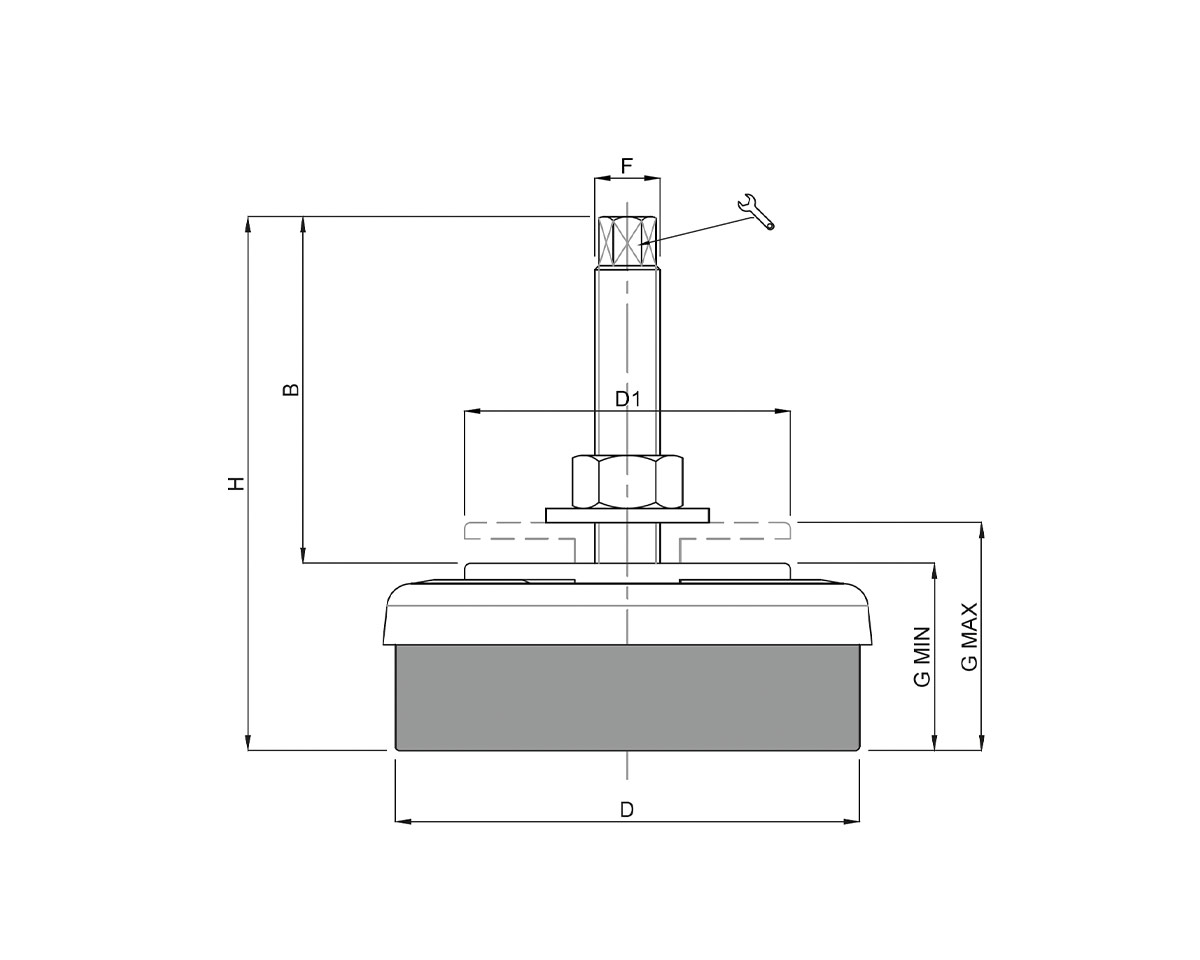

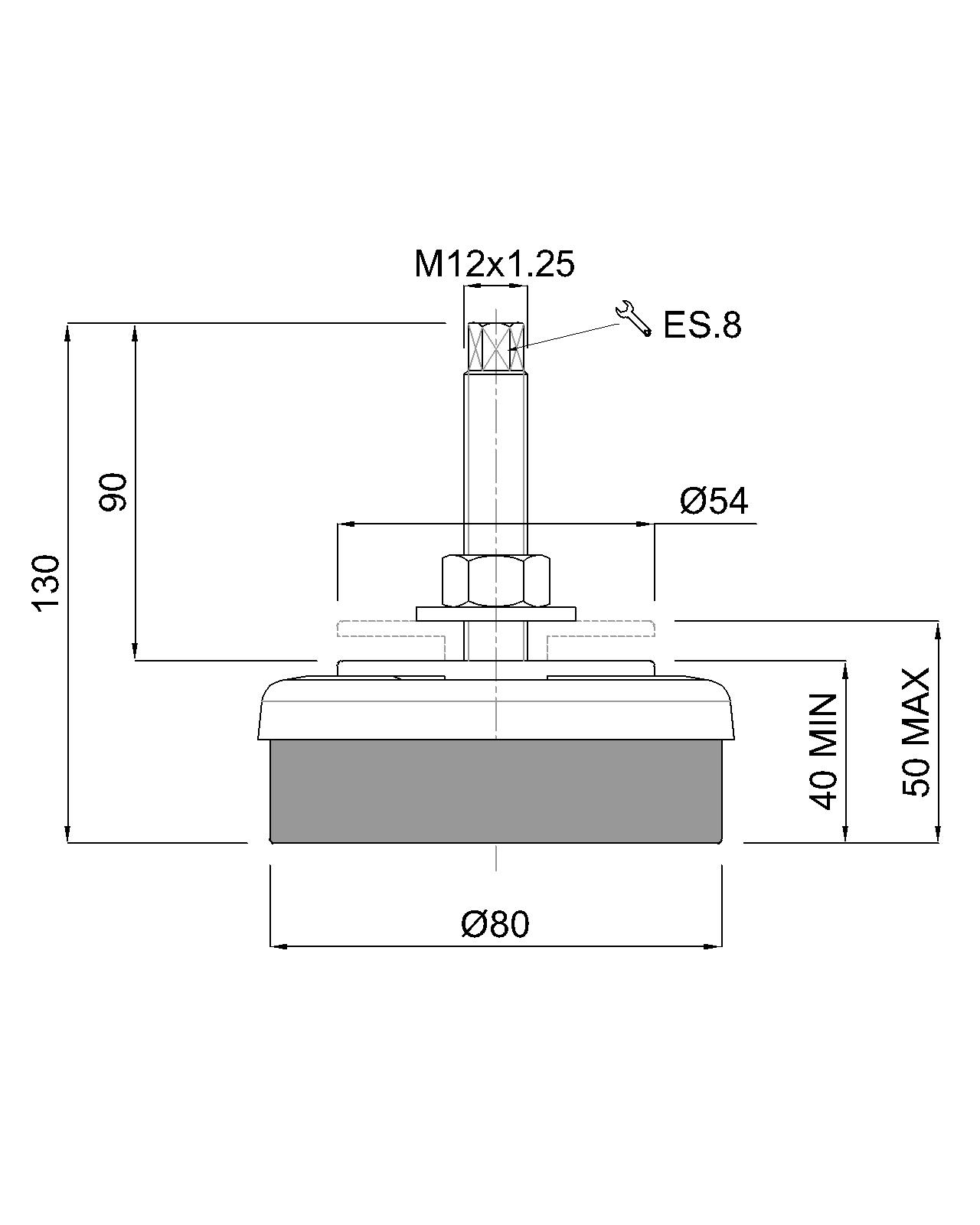

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
