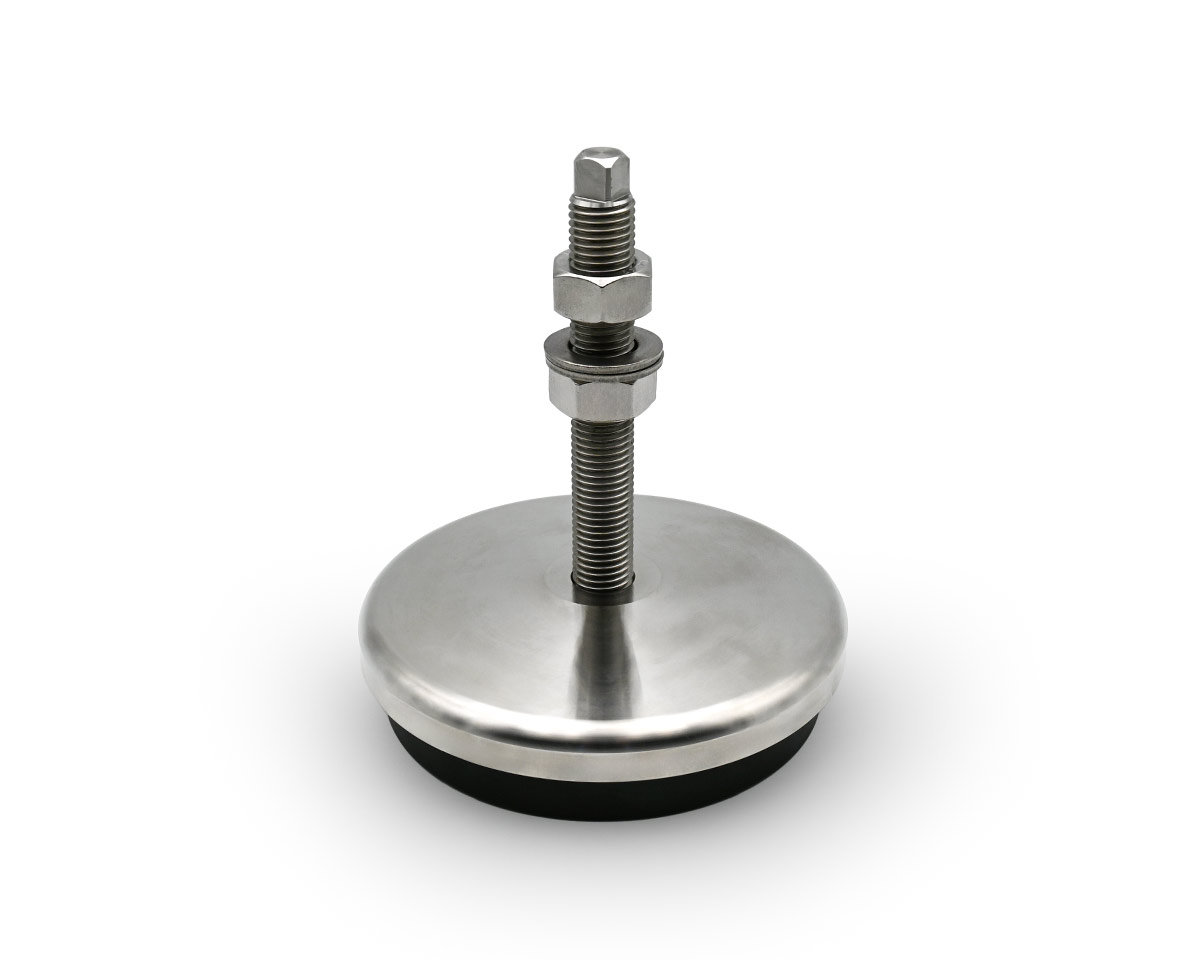

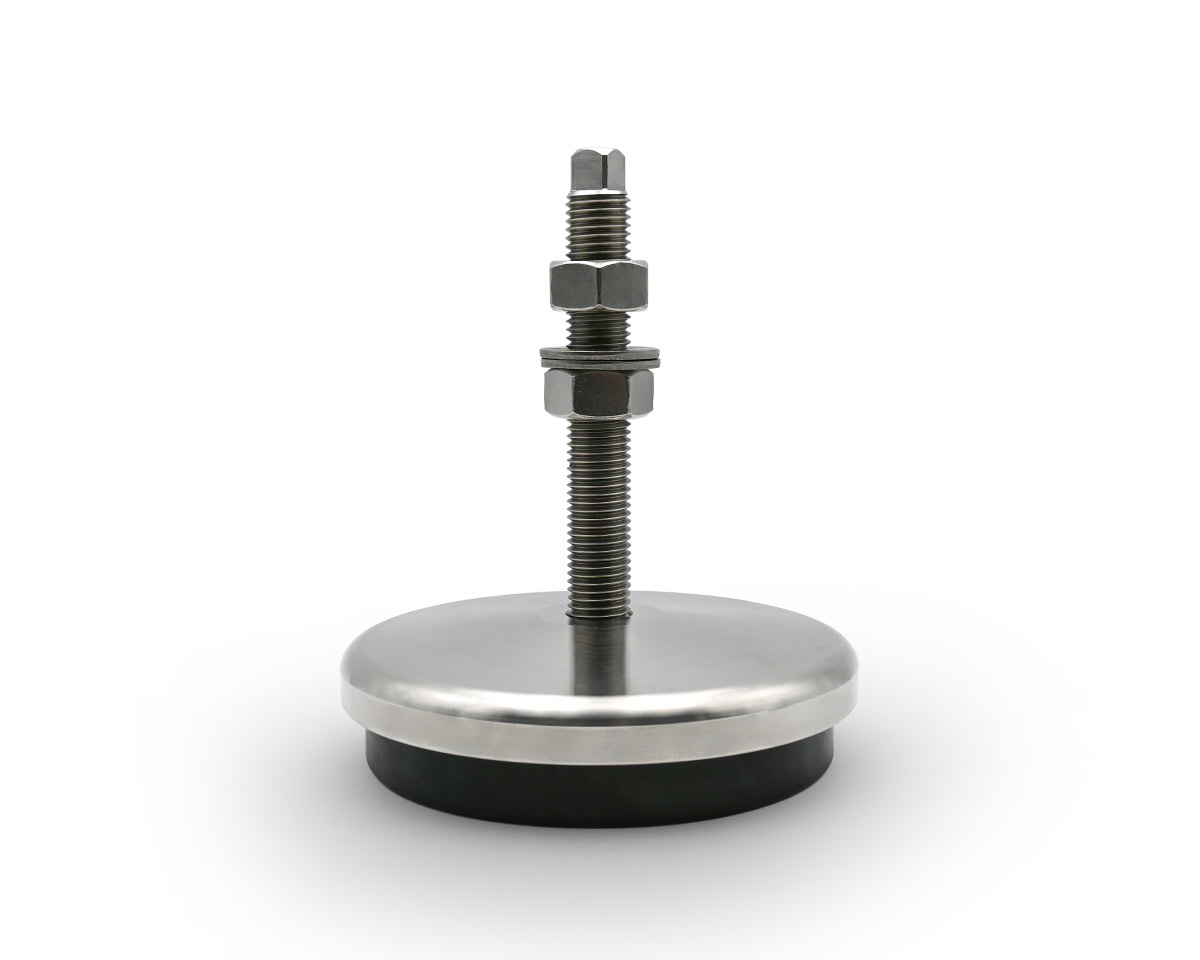

Levelling foot ANTIVIBRATION, Ø 140 mm Stainless steel, M16 x 125 mm, NBR
Enhance your machinery's stability with our Ø 140 mm stainless steel levelling foot featuring vibration-damping technology and a robust design, supporting dynamic loads up to 8,000 N.
| Quantity | Price |
|---|---|
| From 1 |
€74.83*
|
| From 5 |
€73.85*
|
| From 15 |
€72.86*
|
| From 50 |
€70.40*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | yes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 16 |
| Spindle length (mm): | 125 |
| Balancing angle: | 0° |

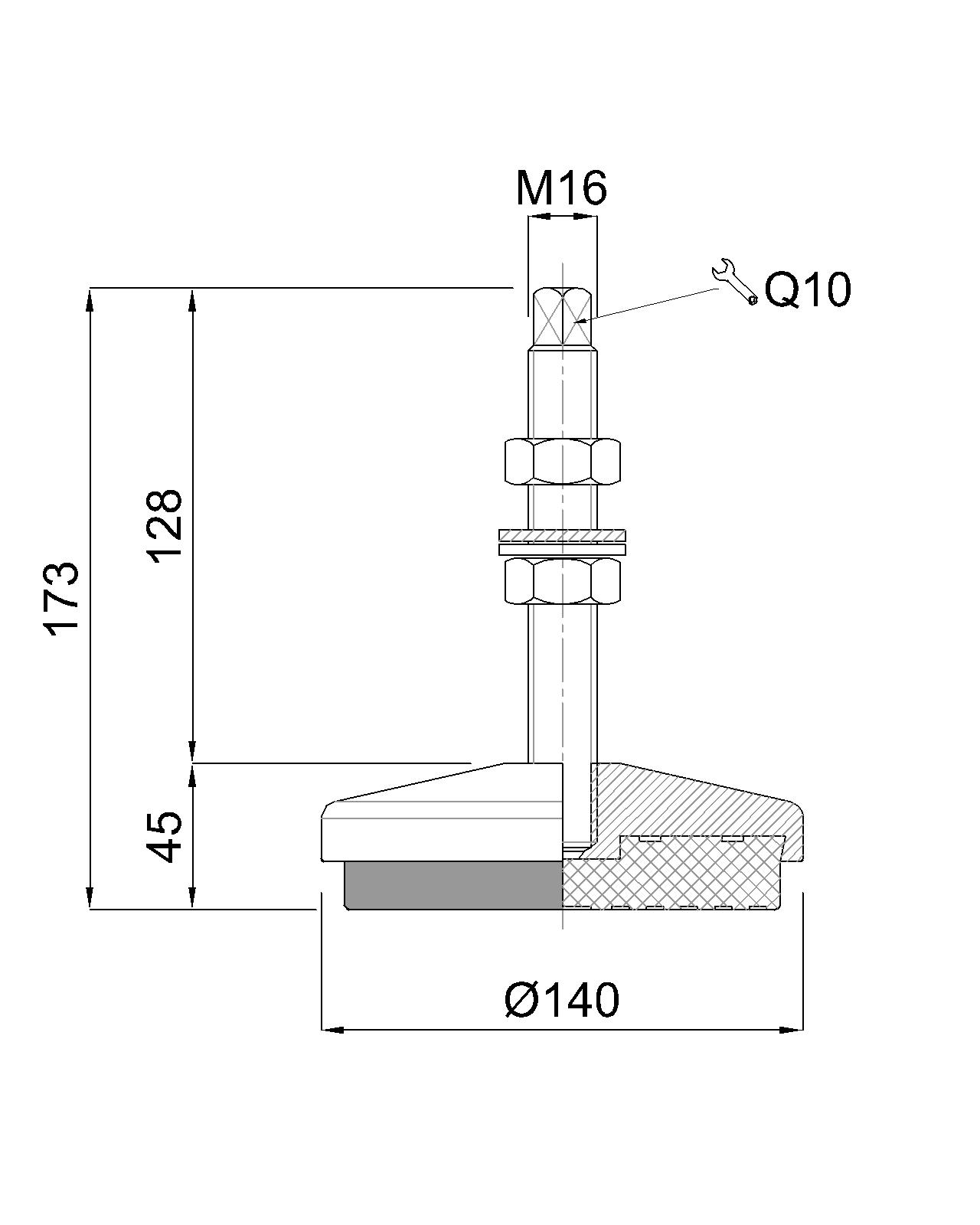

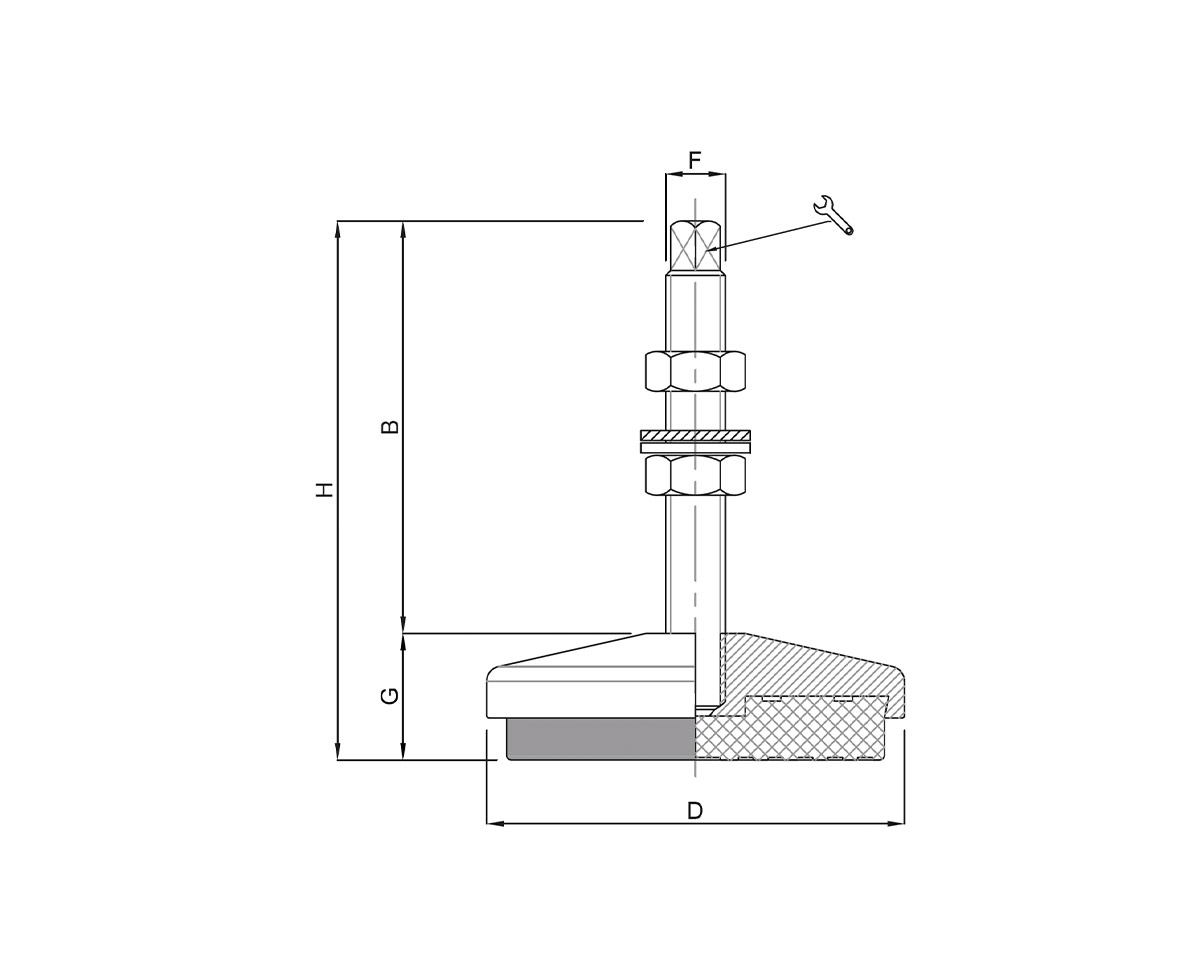

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Download STP file as ZIP
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
