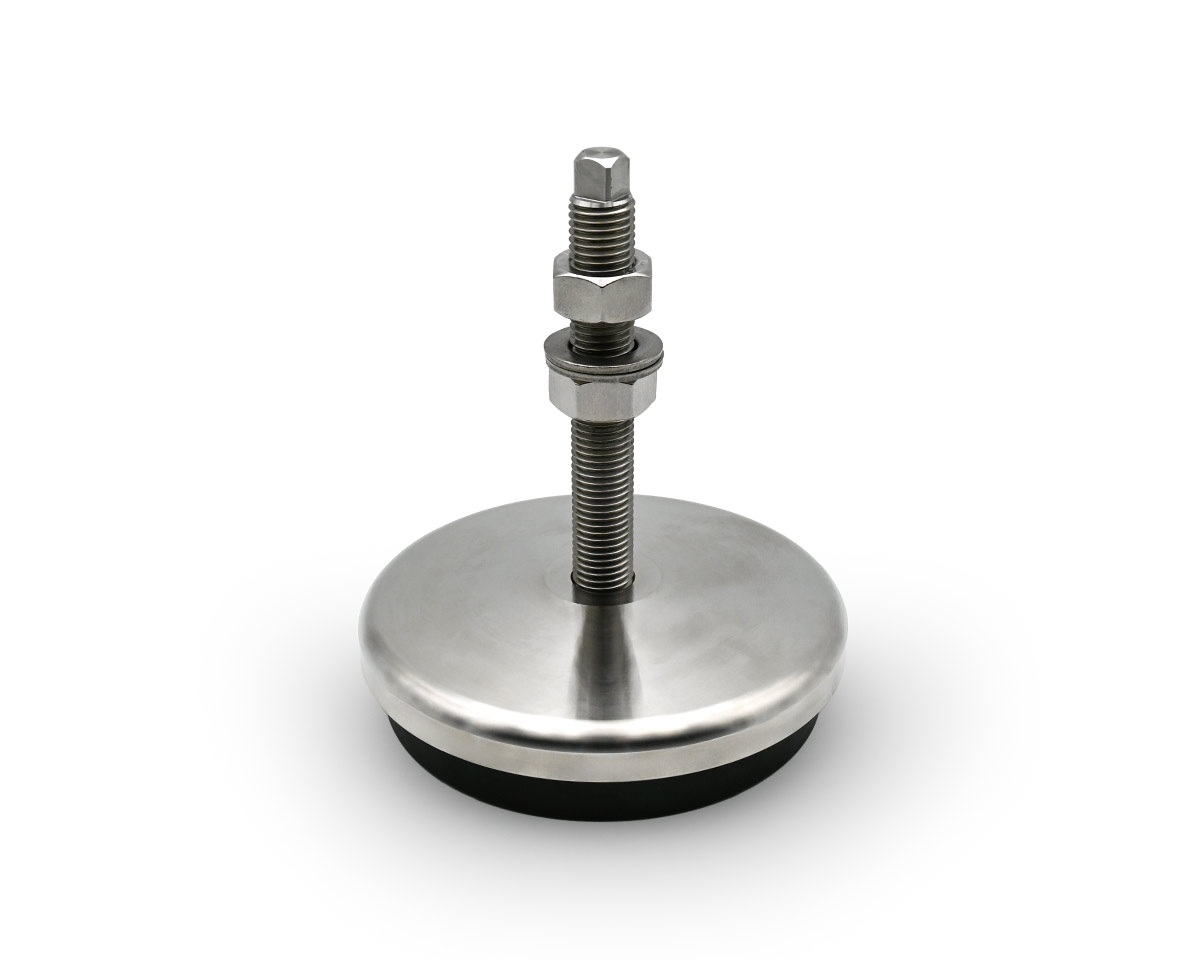

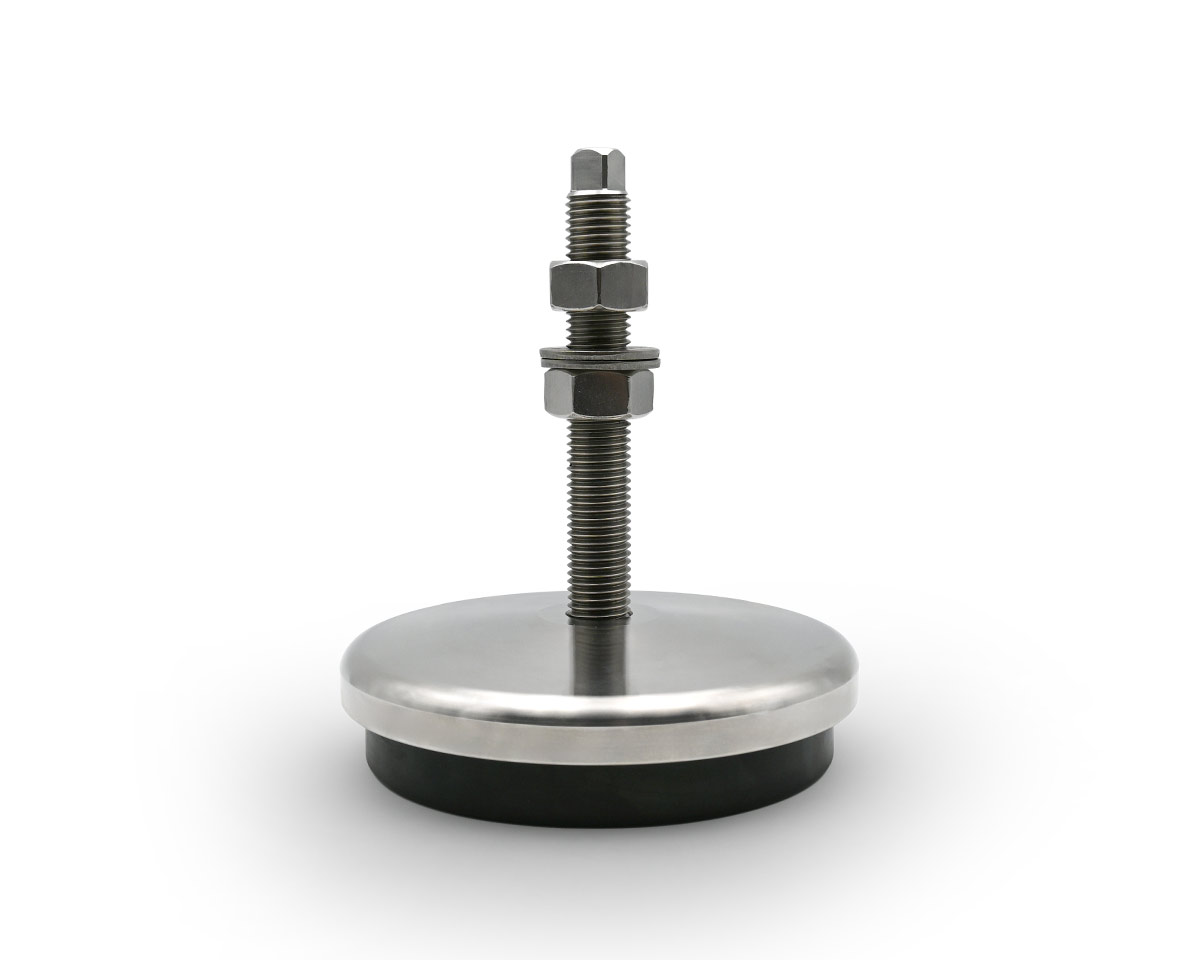

Levelling foot ANTIVIBRATION, Ø 180 mm Stainless steel, M20 x 125 mm, NBR
Enhance stability with our 180mm stainless steel levelling foot, featuring NBR anti-slip properties. Ideal for vibration damping, it supports dynamic loads up to 17,000N.
| Quantity | Price |
|---|---|
| From 1 |
€135.72*
|
| From 5 |
€133.94*
|
| From 15 |
€132.15*
|
| From 50 |
€127.68*
|
Currently sold out, Refill time: 5 days
Product properties
| Footplate material: | Stainless steel |
| Anti-slip: | NBR black |
| Ø range base plate (mm): | 131-230 |
| Vibration damping: | Yes |
| Material spindle: | Stainless steel |
| Ø spindle (mm): | 20 |
| Spindle length (mm): | 125 |
| Balancing angle: | 0° |

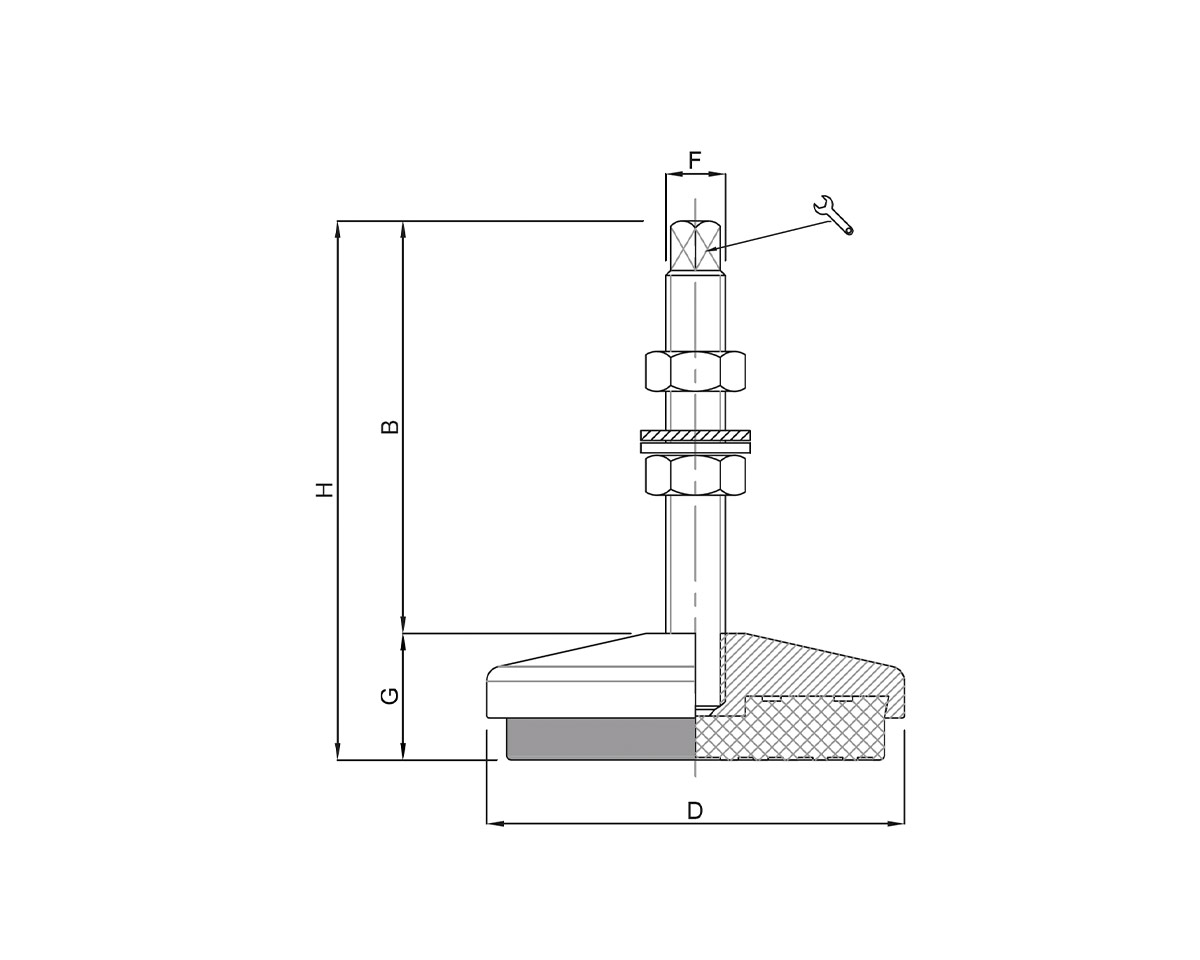

Technical drawing
We develop customised components exactly as you need them for your application.
Technical documentation
In this section you will find all relevant documents & links for your documentation::
Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
