Levelling foot PA, Ø 123 mm, M16 x 200 mm Steel, Drills, NBR

EAN 4061408094882

Type 45812843

Optimize your equipment stability with our robust Levelling Foot, featuring a 123 mm diameter, M16 galvanized steel spindle, and a static load capacity of 35,000 N.

High durability with a steel spindle and polyamide base, ensuring robust performance in demanding environments
Articulated screw design allows for a compensation angle of 4°, enhancing stability on uneven surfaces
Dynamic load capacity of 35,000 N, making it suitable for heavy-duty applications
Non-slip NBR rubber base provides superior grip and minimizes movement during operation
Easy installation with two bore holes Ø 12.5 mm for secure ground mounting

Quantity	Price
From 1	€13.35*
From 5	€12.78*
From 15	€11.01*
From 50	€10.44*

*Prices excl. VAT plus shipping costs

Currently sold out, Refill time: 5 days

€13.35* / piece

Our payment methods:

Accessories

Plastic levelling foot height extension Ø 123, with anti-slip rubber pad

Type No.: 458PROLD123/G

From €6.93*

Product properties

Footplate material:	Plastic
Anti-slip:	NBR black
Ø range base plate (mm):	111-130
Ground fastening:	2 mounting holes
Material spindle:	Steel
Ø spindle (mm):	16
Spindle length (mm):	200
Balancing angle:	4°

Product description

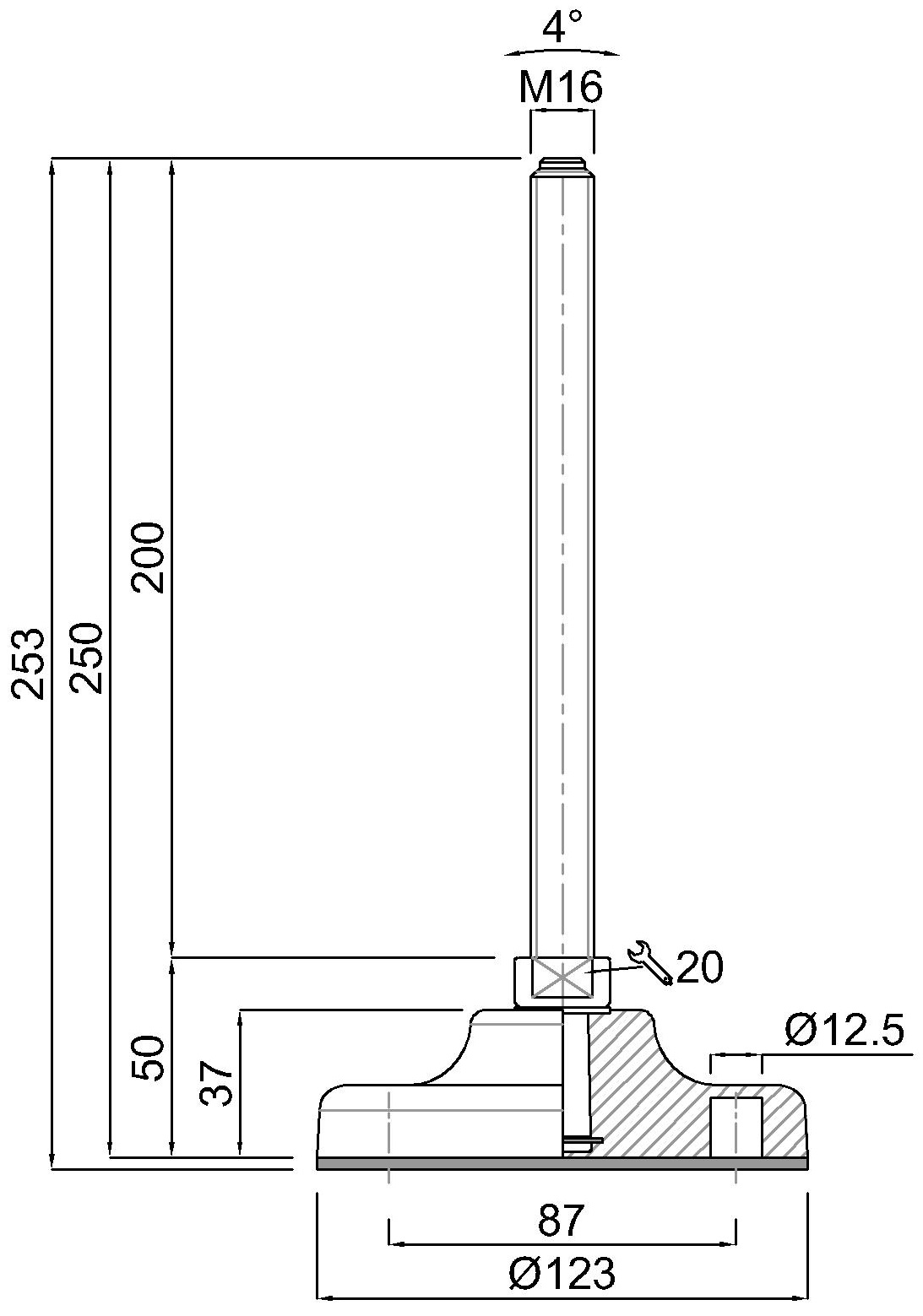

Levelling foot Polyamide, Ø 123 mm, M16 x 200 mm, Galvanized steel, Total height 253 mm, Articulated screw 4°, Bore holes Ø 12,5 mm, Antislip NBR black, Static load 35.000 N

Custom solutions

We develop customised components exactly as you need them for your application.

Learn more about custom solutions Contact us

Technical documentation

In this section you will find all relevant documents & links for your documentation::

Download data sheet
Go to Cadenas-Partcommunity
Certificates & declarations of conformity
